Brand: DESTACO

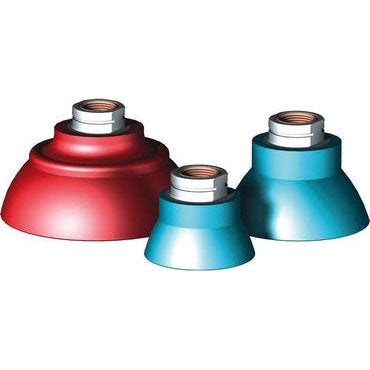

DESTACO CPI-20DD-B-30 DD/DM - ROUND DEEPDISH VACUUM CUP DD 2in. B-MT BLUE
SKU: DE-STA-CO-CPI-20DD-B-30
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-20DD-B-30 Deep Dish Vacuum Cup features thin, deep side walls designed for superior flexibility when handling highly contoured parts. With a diameter of 50.8 mm (2.000 inches), it delivers reliable holding capacities, including 5.4 kg (12 lbf) for vertical lifting. Made from nitrile with a soft durometer of 30, it ensures adaptability and a secure grip on diverse surfaces. Weighing only 40 g (1.4 oz), this lightweight vacuum cup is equipped with a 3/8" NPT mount for easy integration. Ideal for precise handling tasks requiring flexibility and secure performance.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-20DD-B-30 DD/DM - ROUND DEEPDISH VACUUM CUP DD 2in. B-MT BLUE
Product Details
Deep Dish Cups have thin, deep side walls that are very flexible for highly contoured parts
| Holding Capacity - Horizontal Dry (kg) | 4.1 |
| Holding Capacity - Horizontal Dry (lbf) | 9.0 |
| Holding Capacity - Horizontal Wet (kg) | 3.2 |
| Holding Capacity - Horizontal Wet (lbf) | 7.0 |
| Holding Capacity - Vertical Lift (kg) | 5.4 |
| Holding Capacity - Vertical Lift (lbf) | 12 |
| Weight (g) | 40.0 |
| Weight (oz) | 1.4 |
| Diameter (mm) | 50.8 |
| Diameter (in) | 2.000 |
| Material | Nitrile |
| Durometer | 30 (Blue) |
| Mount | 3/8" NPT |
| Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Deepdish |
| Cup Size | 2.00 in |
| Product Series Description | Nitrile Rubber |
