Brand: DESTACO

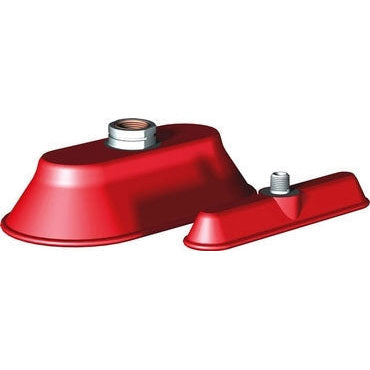

DESTACO CPI-36DD-C-45 DD/DM OVAL - OVAL DEEPDISH VACUUM CUP DD 3X6 C-MT RED
SKU: DE-STA-CO-CPI-36DD-C-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Revolutionize your product handling with DESTACO CPI-36DD-C-45 DD/DM OVAL - OVAL DEEPDISH VACUUM CUP DD 3X6 C-MT RED! Our Oval Deep Dish Cups boast thin, flexible side walls that easily conform to highly contoured parts. Hold up to 24.9kg (55.0 lbf) horizontally in dry conditions and 10.4kg (23.0 lbf) horizontally in wet conditions. For vertical lifting, trust our cups with a remarkable 63.1kg (139 lbf) lifting capacity. Designed with durability in mind, these cups are made with nitrile material rated at 45 durometer (in vibrant red) and mounted on a 1.25" square for maximum stability. Weighing only 210.0g (7.1oz) and measuring at 155.8mm (6.130in) in length and 79.6mm (3.130in) in width.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-36DD-C-45 DD/DM OVAL - OVAL DEEPDISH VACUUM CUP DD 3X6 C-MT RED
Product Details
Oval Deep Dish Cups have thin, deep side walls that are very flexible for highly contoured parts
| Holding Capacity - Horizontal Dry (kg) | 24.9 |
| Holding Capacity - Horizontal Dry (lbf) | 55.0 |
| Holding Capacity - Horizontal Wet (kg) | 10.4 |
| Holding Capacity - Horizontal Wet (lbf) | 23.0 |
| Holding Capacity - Vertical Lift (kg) | 63.1 |
| Holding Capacity - Vertical Lift (lbf) | 139 |
| Weight (g) | 210.0 |
| Weight (oz) | 7.1 |
| Length (mm) | 155.8 |
| Length (in) | 6.130 |
| Width (mm) | 79.6 |
| Width (in) | 3.130 |
| Material | Nitrile |
| Durometer | 45 (Red) |
| Mount | 1.25" Square |
| Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Oval |
| Product Type | Deepdish |
| Cup Size | 3.00 x 6.00 in |
| Product Series Description | Nitrile Rubber |
