Brand: Imco

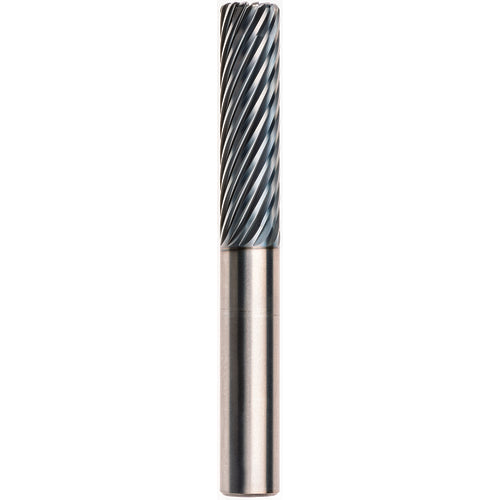

Imco DD4464292 3/4" × 3/4" × 1-7/8" × 4-1/2 AlCrNX IPT1313F .125R 2.5xD Pow-R-Path Mill
SKU: FTS-DD4464292
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
DD4464292 " 3/4" × 3/4" × 1-7/8" × 4-1/2 AlCrNX IPT13Â13F .125R 2.5xD Pow-R-Path MillFull Description
| Cutting Diameter (DC) | 3/4" | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/4" | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | " 1-7/8" | Corner Radius (RE) | 0.125" |
| Overall Length (OAL) | " 4-1/2" | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75" |
| Coating | AlCrNX | Measurement Type | Inch |
| Flute Count (NOF) | 13 | Series/List # | IPT13-CR |
•AlCrNX coated•Built for results with 13 cutting edges to yield incredible feed rates•IPT13 has a very thick core for" extra stability when machining materials up to 3.5X the tool diameter deep•NOTE: The IPT13 is NOT designed for light duty machines and should only be run in machines with adequate spindle torque and horsepower
