Brand: Imco

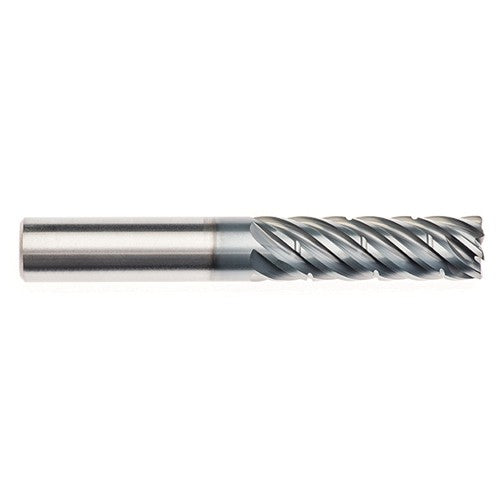

Imco DD4463651 3/4" × 3/4" × 1-1/2" × 4" AlCrNX IPC77F .060R 2xD Pow-R-Path Mill
SKU: FTS-DD4463651
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
DD4463651 " 3/4" × 3/4" × 1-1/2" × 4" AlCrNX IPC7Â7F .060R 2xD Pow-R-Path MillFull Description
| Cutting Diameter (DC) | 3/4" | Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 3/4" | Corner Radius (RE) | 0.06" |
| Depth of Cut Maximum (APMX) | " 1-1/2" | Tool Type | Single-End |
| Overall Length (OAL) | 4" | Length Group | 2D |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75" |
| Coating | AlCrNX | Series/List # | IPC7-CR |
| Flute Count (NOF) | 7 |
•Specifically designed to maiximize High Efficiency Machining (HEM) techniques•Chip Management System (CMS) for maximum chip evacuation and longer tool life•Corner radius with CMS•40° Helix•AlCrNX Coated.
