Brand: Imco

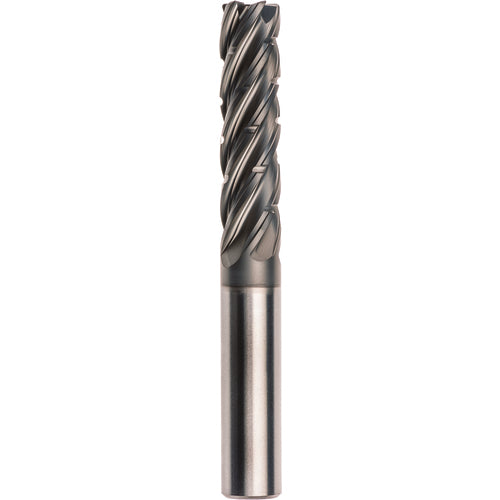

Imco DD4461434 5/8" × 5/8" × 1-7/8" × 4" taC APC5 5F SQ 3xD Pow-R-Path Mill
SKU: FTS-DD4461434
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
DD4461434 5/8"× 5/8"× 1-7/8"× 4"taC APC5 5F SQ 3xD Pow-R-Path MillFull Description
| Cutting Diameter (DC) | 5/8" | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 5/8" | Usable Length (LU) | 1-7/8" |
| Depth of Cut Maximum (APMX) | 1-7/8" | Corner Radius (RE) | None |
| Overall Length (OAL) | 4" | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Style | 3xD |
| Coating | Ta-C | Decimal Equivalent | 0.625" |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 35 Degrees | Series/List # | APC5-SQ |
| Shank Type | Plain |
•Benefit from the unique Chip Management System (CMS).•CMS breaks up long, stringy chips, which eliminates recutting chips and chip packing and allows for deep, free cutting tool movement in aluminum.•The results are great chip control and very high metal removal rates.
