Brand: Imco

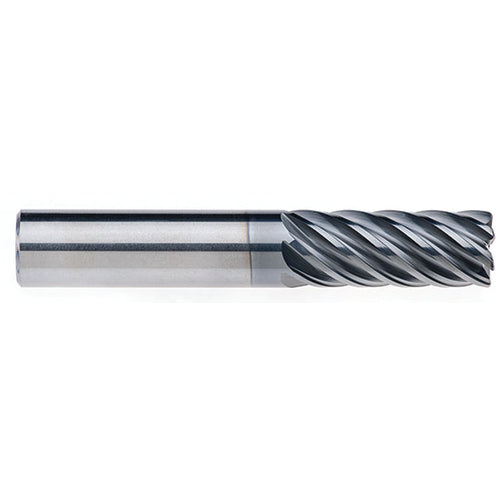

Imco DD4266223 3/4" × 3/4" × 1-5/8" × 4" AlCrNX M527 7F .060R RR enDURO Mill
SKU: FTS-DD4266223
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
DD4266223 3/4"× 3/4"× 1-5/8"× 4"AlCrNX M527 7F .060R RR enDURO MillFull Description
| Cutting Diameter (DC) | 3/4" | Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 3/4" | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-5/8" | Usable Length (LU) | 1-5/8" |
| Overall Length (OAL) | 4" | Corner Radius (RE) | 0.06" |
| Cutting Edge Material | Carbide | Tool Type | Single-End |
| Coating | AlCrNX | Decimal Equivalent | 0.75" |
| Flute Count (NOF) | 7 | Series/List # | M527-CR |
•Advanced cutting edge design for higher metal removal in hard-to-machine materials•Unique vibration dampening geometry for maximum tool stability•Specifically designed to run wet or dry on today's high speed, high efficiency machines•40° Helix•AlCrNX Coating.
