Brand: Imco

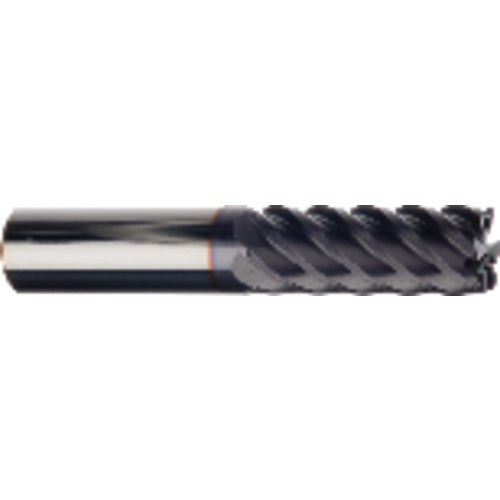

Imco DD4063196 3/8" x 3/8" x 1/2" x 2-1/2" TiAlNX M7066F SR Omega-6 Mill
SKU: FTS-DD4063196
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 63196 3/8" x 3/8" x 1/2" x 2-1/2" TiAlNX M7066F SR Omega-6 MillFull Description
| Cutting Diameter (DC) | 3/8" | Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 3/8" | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1/2" | Usable Length (LU) | 1" |
| Overall Length (OAL) | 2-1/2" | Tool Type | Single-End|High Performance |
| Cutting Edge Material | Carbide | Length Group | Standard |
| Coating | TiAlN X | Decimal Equivalent | 0.375" |
| Flute Count (NOF) | 6 | Series/List # | M706-SQ |
