Brand: Imco

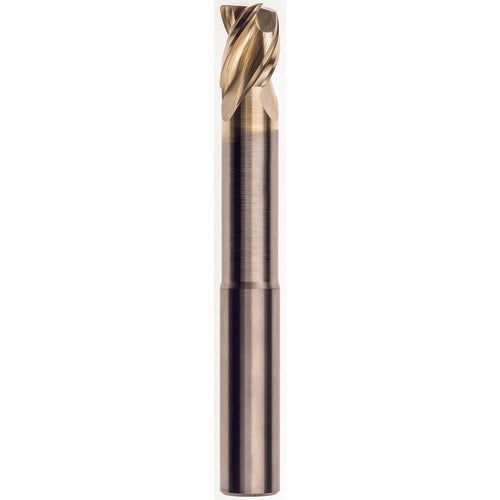

Imco DD4061357 10 mm × 10 mm × 15 mm × 88 mm LBS=42 ZrN M223N 3F SQ SL Streaker Mill
SKU: FTS-DD4061357
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
DD4061357 10 mm × 10 mm × 15 mm × 88 mm LBS=42 ZrN M223N 3F SQ SL Streaker MillFull Description
| Cutting Diameter (DC) | 10 mm | Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 10 mm | End Shape | Center Cutting |
| Depth of Cut Maximum (APMX) | 15 mm | Usable Length (LU) | 30 mm |
| Overall Length (OAL) | 88 mm | Corner Radius (RE) | None |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | ZrN | Decimal Equivalent | 0.3937" |
| Flute Count (NOF) | 3 | Series/List # | M223N-SQ |
| Flute Helix Angle (FHA) | 37 Degrees |
•Designed for machining aluminum.•ZrN coated for maximum tool life.
