Brand: Imco

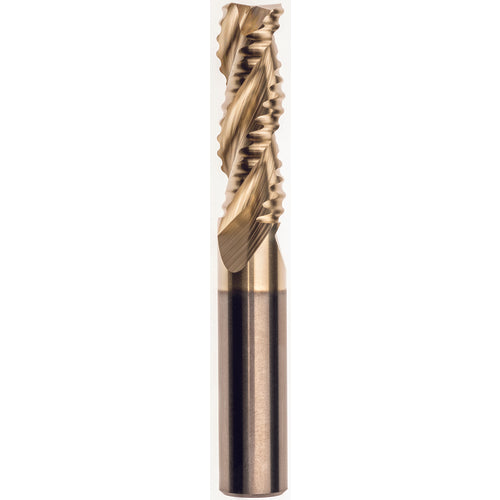

Imco DD4061339 16 mm × 16 mm × 48 mm × 110 mm ZrN M233 3F 1.0R LL Streaker Mill
SKU: FTS-DD4061339
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
DD4061339 16 mm × 16 mm × 48 mm × 110 mm ZrN M233 3F 1.0R LL Streaker MillFull Description
| Cutting Diameter (DC) | 16 mm | Flute Helix Angle (FHA) | 37 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 48 mm | Corner Radius (RE) | 1 mm |
| Overall Length (OAL) | 110 mm | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.6299" |
| Coating | ZrN | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | M233-CR |
•Designed for machining aluminum•ZrN coated for maximum tool life
