Brand: Imco

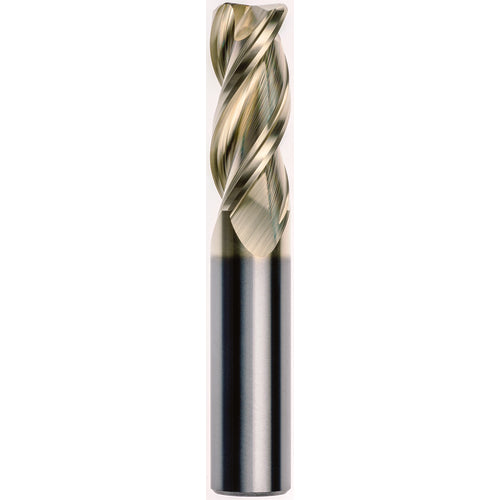

Imco DD4061312 20 mm × 20 mm × 40 mm × 104 mm ZrN M223 3F 2.0R RR Streaker End Mill
SKU: FTS-DD4061312
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
DD4061312 20 mm × 20 mm × 40 mm × 104 mm ZrN M223 3F 2.0R RR Streaker End MillFull Description
| Cutting Diameter (DC) | 20 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Corner Radius (RE) | 2 mm |
| Depth of Cut Maximum (APMX) | 40 mm | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 104 mm | Decimal Equivalent | 0.7874" |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | ZrN | Series/List # | M223-CR |
| Flute Count (NOF) | 3 | Package Height | 1.50000 |
| Flute Helix Angle (FHA) | 37 Degrees |
•Designed for machining aluminum•ZrN coated for maximum tool life
