Brand: Imco

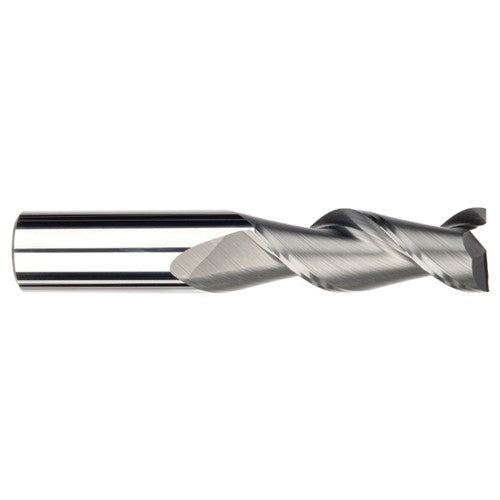

Imco DD4032432 3/8" x 3/8" x 7/8" x 2-1/2" MG M2022F RRW Streaker Mill
SKU: FTS-DD4032432
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 32432 3/8" x 3/8" x 7/8" x 2-1/2" MG M2022F RRW Streaker MillFull Description
| Cutting Diameter (DC) | 3/8" | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/8" | Usable Length (LU) | 1" |
| Depth of Cut Maximum (APMX) | 1" | Corner Radius (RE) | None |
| Overall Length (OAL) | 2-1/2" | Tool Type | Single-End|High Performance |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375" |
| Coating | Uncoated | Series/List # | M202-SQ |
| Flute Count (NOF) | 2 | Corner Radius (RE) / Chamfer Width (CHW) | None |
| Shank Type | Weldon |
• Solid carbide 2 flute square end 45 helix, center cutting end mill • 2 flute round shank • 2 flute style M202: great for both roughing and finishing • Use for high or low speed applications • High strength carbide • For high chip loads • Excellent surface finishes
