Brand: Iscar

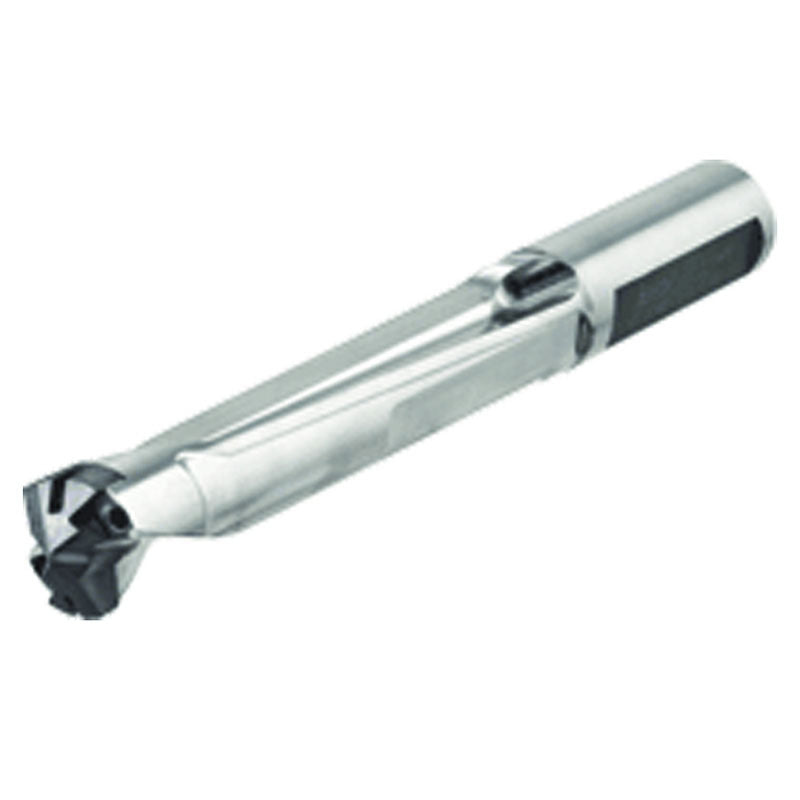

Iscar EH3203025 DCNS 0866-260-086B-3D
SKU: FTS-EH3203025
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3203025 DCNS 0866-260-086B-3DFull Description
| Cutting Diameter (DC) | 0.866" | Protruding Length (LPR) | 3.71" |
| Usable Length (LU) | 2.7291" | Functional Length (LF) | 3.555" |
| Length Group | 3D | Overall Length (OAL) | 6.075" |
| Shank Type | Weldon | Shank Length (LS) | 2.36" |
| Application | | Chamfering | Drilling | | Coolant Supply Property (CSP) | Through Hole |
| Tool Type | Indexable Insert Drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.866" | Master Insert Identification (MIID) | ICP 220 |
| Insert Seat Size Code (SSC) | 22.0 | Point Length (PL) | 0.13071" |
| Cutting Diameter Minimum (DCN) | 0.866" | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.902" | Decimal Equivalent | 0.866" |
Family Description
Exchangeable head drills without a flange and one flat shank, drilling depth 3xD. Suitable for chamfering holders.
Do not mount smaller drilling heads other than the specified range of the drill body
