Brand: Iscar

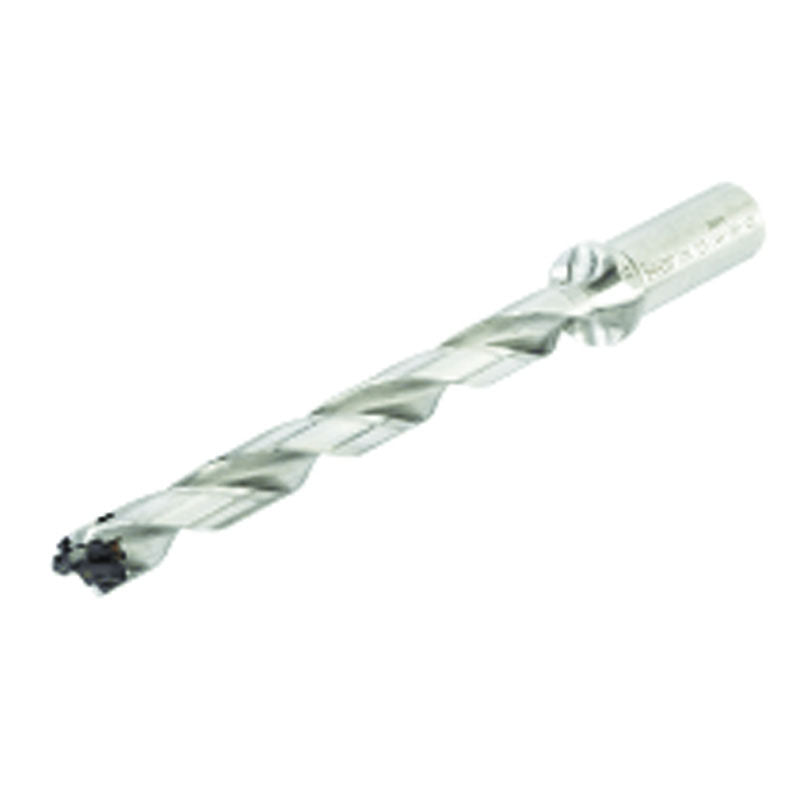

Iscar EH3202834 DCN 0709-850-100R-12D
SKU: FTS-EH3202834
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3202834 DCN 0709-850-100R-12DFull Description
| Cutting Diameter (DC) | 0.709" | Overall Length (OAL) | 11.83" |
| Usable Length (LU) | 8.63" | Shank Length (LS) | 2.2" |
| Length Group | 12D | Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 180 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.129" |
| Connection Diameter Machine Side (DCONMS) | 1" | Body Material | Steel |
| Insert Seat Size Code (SSC) | 18.0 | Flange Diameter (DF) | 1.26" |
| Cutting Diameter Minimum (DCN) | 0.709" | Decimal Equivalent | 0.709" |
| Cutting Diameter Maximum (DCX) | 0.744" | Body Diameter Reduced (BDRED) | 1.26" |
| Protruding Length (LPR) | 9.63" | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 9.501" |
Family Description
SUMOCHAM 12xD drills with indexable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Prior to using the 12xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill The HCP or QCP drilling head may eliminate the need for a pre-hole Do not mount smaller drilling heads other than the specified range of the drill body
