Brand: Iscar

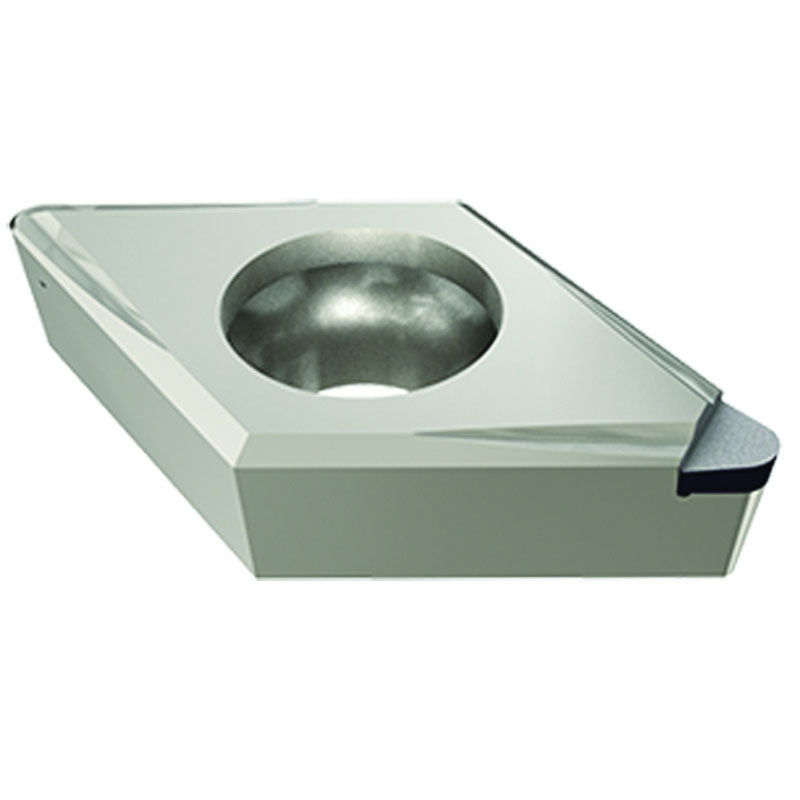

Iscar EH5507290 DCMT 2-1-SM IC9250
SKU: FTS-EH5507290
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5507290 DCMT 2-1-SM IC9250Full Description
| Applicable Material | | Steel | Stainless Steel | | Fixing Hole Diameter (D1) | 0.11" |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Insert | Int 55° Diamond 93 5° Approach | | Min D.O.C. | 0.02" |
| Insert Style | DCMT | Depth of Cut Maximum (APMX) | 0.098" |
| Corner Radius (RE) | 0.016" | Min. Turning Feed (ft(min)) | 0.002 "/rev |
| Insert Size | 2-1 | Max. Turning Feed (ft(max)) | 0.0098 "/rev |
| Cutting Edge Length (L) | 0.303" | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.094" | Chip Breaker Type | SM |
| Inscribed Circle Diameter (IC) | 1/4" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 55° Rhombic |
| Coating | TiCN+alpha Al2O3+TiN | Series/List # | DCMT 2-1-SM |
| Grade | IC9250 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
Family Description
55° rhombic 7° positive flank inserts used for semi-finishing and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials including soft and exotic alloys.
For dimensions and tolerances, see more info.
