Brand: Precision Cutting Tools

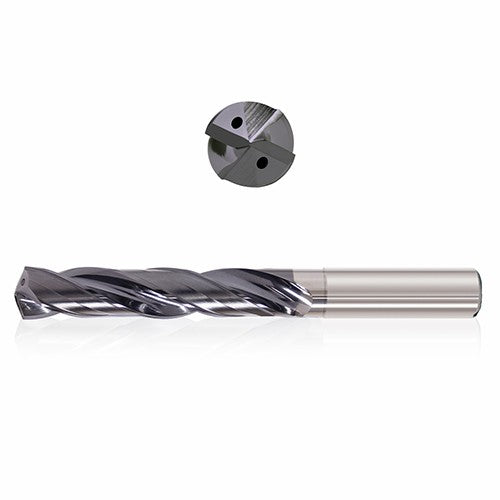

Precision Cutting Tools CW8168810 0.1406 mm Dia. × 6 mm Shank × 135 mm Flute Length × 185 mm OAL, 30xD, 135°, Varianta Supral, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill
SKU: FTS-CW8168810
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
CW8168810 0.1406 mm Dia. × 6 mm Shank × 135 mm Flute Length × 185 mm OAL, 30xD, 135°, Varianta Supral, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide DrillFull Description
| Drill Bit Size / Cutting Diameter (DC) | 0.1406 mm | Shape | Round |
| Decimal Equivalent | 0.0055" | Cutting Edge Material | Carbide |
| Length Group | 30xD | Tool Type | Solid Carbide Drill |
| Coating | Varianta Supral | Flute Type | Helical |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Grade | H5009 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | SXC |
| Point Angle (SIG) | 135 Degrees | Usable Length (LU) | 5.1041 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 135 mm |
| Number of Teeth | 2 | Overall Length (OAL) | 185 mm |
| Shank Length (LS) | 1.9685 mm | Flute Count (NOF) | 2 |
| Shank Type | Cylindrical | Feature | DOUBLE-MARGIN DRILL, COOLANT THRU |
| Shank Standard | h6 | Cutting Direction (HAND) | Right Hand |
•Ideal for Stainless Steels, Heat Resistant Alloys & Cast Material applications
