Brand: Precision Cutting Tools

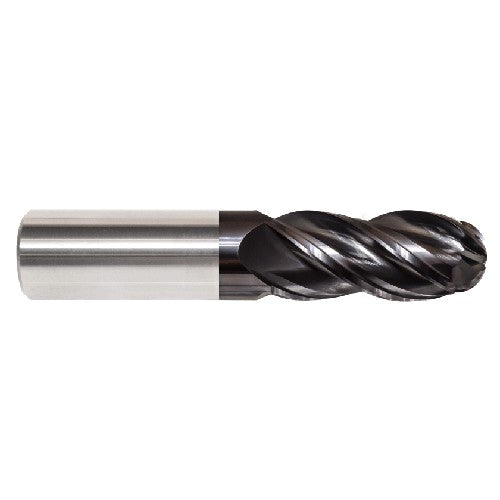

Precision Cutting Tools CW8021350 451 SERIES 4 FLUTE FOR CAST IRON, STEELS, AND SOFT STAINLESS(BALLNOSE)
SKU: FTS-CW8021350
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
CW8021350 451 SERIES 4 FLUTE FOR CAST IRON, STEELS, AND SOFT STAINLESS(BALLNOSE)Full Description
| Cutting Diameter (DC) | 1/8" | Grade | A5009 Varianta Supral |
| Connection Diameter Machine Side (DCONMS) | 1/8" | Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 1/2" | Length Group | Stub |
| Overall Length (OAL) | 1-1/2" | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiAICN | Shank Standard | h6 |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.125" |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 1/2" | Series/List # | 451 |
| Application | | Finish | Roughing | Semi Finish | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.001 /tooth |
| Corner Radius (RE) | 1/16" | Minimum Feed per Tooth (fz(min)) | 0.0003 /tooth |
| Number of Teeth | 4 | Shank Size (SS) | 1/8" |
Family Description
451 SERIES 4 FLUTE FOR CAST IRON, STEELS, AND SOFT STAINLESS(BALLNOSE)
