Brand: ProCut II

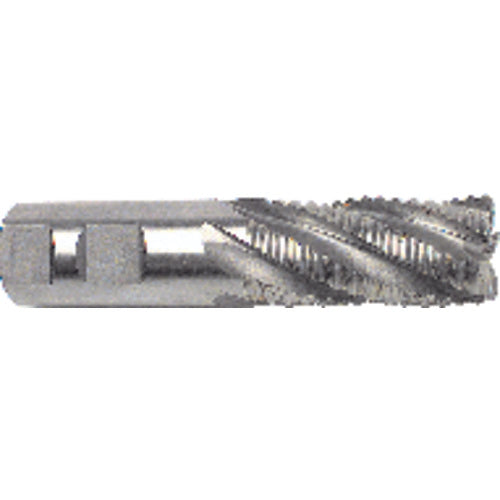

ProCut II CV72CRC205 5/8" Dia-3-3/4" OAL-TiCN M42-Roughing SE EM-4 FL
SKU: FTS-CV72CRC205
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
ProCut II CV72CRC205 5/8" Dia-3-3/4" OAL-TiCN M42-Roughing SE EM-4 FLFull Description
| Cutting Diameter (DC) | 5/8" | Usable Length (LU) | 1-5/8" |
| Connection Diameter Machine Side (DCONMS) | 5/8" | Tool Type | Roughing |
| Depth of Cut Maximum (APMX) | 1-5/8" | Length Group | Standard |
| Overall Length (OAL) | 3-3/4" | Flute Type | Coarse |
| Cutting Edge Material | HSSCo | Decimal Equivalent | 0.625" |
| Coating | TiCN | Package Height | .90000 |
| Flute Count (NOF) | 4 |
• M-42 Cobalt - Coarse Tooth Center Cutting Roughing End Mills • For general purpose milling of soft to medium hard materials • Suitable for heavier feed rates • TiN coating improves tool life and allows elevated feeds and speeds • TiCN coating is ideal for cutting extremely abrasive or difficult to cut materials
