Brand: DESTACO

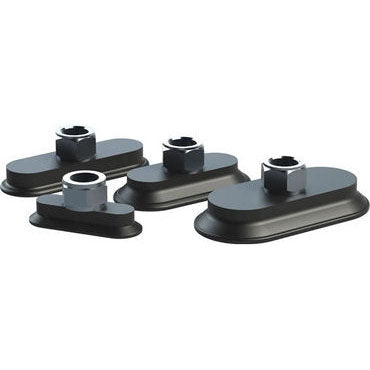

DESTACO CPI-9030MFF-B-HT 90mm x 30mm Oval Flat Foot Cup - 3/8 G - High Temperature
SKU: DE-STA-CO-CPI-9030MFF-B-HT
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-9030MFF-B-HT Oval Flat Foot Cup is optimized for high-temperature hot form stamping applications, tolerating temperatures up to 250°C (482°F). Made of silicone-free HT2 material, it provides excellent chemical resistance against oil, water, grease, hydraulic fluid, and alcohol, ensuring durability in harsh environments. It offers a horizontal dry holding capacity of 9.8 kg (21.6 lbf), a horizontal wet capacity of 6.5 kg (14.4 lbf), and a vertical lift capacity of 12.4 kg (27.4 lbf). The cup measures 94 mm x 34 mm (3.700 in x 1.340 in) and weighs 68.5 g (2.4 oz), making it lightweight and adaptable for precision tasks in high-temperature conditions. Its 3/8 G mount ensures compatibility with various industrial setups.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-9030MFF-B-HT 90mm x 30mm Oval Flat Foot Cup - 3/8 G - High Temperature
Product Details
Oval flatfoot style vacuum cups designed special for high temperature hot form stamping applications
- Temperature: Resistant up to 250° C (482° F) (sheet metal temperature)
- Material: Silicone free HT2
- Chemical Resistance: Oil, water, grease, hydraulic fluid, alcohol
| Holding Capacity - Horizontal Dry (kg) | 9.8 |
| Holding Capacity - Horizontal Dry (lbf) | 21.6 |
| Holding Capacity - Horizontal Wet (kg) | 6.5 |
| Holding Capacity - Horizontal Wet (lbf) | 14.4 |
| Holding Capacity - Vertical Lift (kg) | 12.4 |
| Holding Capacity - Vertical Lift (lbf) | 27.4 |
| Weight (g) | 68.5 |
| Weight (oz) | 2.4 |
| Length (mm) | 94.0 |
| Length (in) | 3.700 |
| Width (mm) | 34.0 |
| Width (in) | 1.340 |
| Material | HT2 |
| Durometer | HT (Black) |
| Mount | 3/8 G |
| Temperature Range | Resistant up to 250°C |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Oval |
| Product Type | Hot Forming Flat |
| Cup Size | 90 x 30 mm |
| Product Series Description | Nitrile Rubber |
