Brand: DESTACO

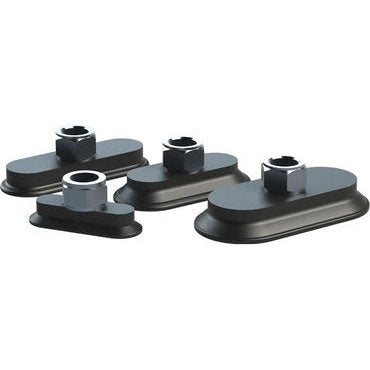

DESTACO CPI-8040MFF-B-HT 80mm x 40mm Oval Flat Foot Cup - 3/8 G - High Temperature

SKU: DE-STA-CO-CPI-8040MFF-B-HT
MPN: CPI-8040MFF-B-HT

$258.48
Unit price per
Save $29.88

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO CPI-8040MFF-B-HT Oval Flat Foot Cup is engineered for high-temperature hot form stamping applications, with a temperature resistance of up to 250°C (482°F). Constructed from silicone-free HT2 material, it exhibits strong chemical resistance to oil, water, grease, hydraulic fluids, and alcohol, making it suitable for demanding industrial environments. This oval flatfoot vacuum cup delivers a horizontal dry holding capacity of 11.2 kg (24.7 lbf), a horizontal wet capacity of 10.2 kg (22.5 lbf), and a vertical lift capacity of 14.3 kg (31.5 lbf). With dimensions of 85 mm x 43 mm (3.350 in x 1.690 in) and weighing 65.1 g (2.3 oz), this cup is lightweight yet robust, ideal for applications requiring precision and heat resistance.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-8040MFF-B-HT 80mm x 40mm Oval Flat Foot Cup - 3/8 G - High Temperature

Product Details

Oval flatfoot style vacuum cups designed special for high temperature hot form stamping applications

Temperature: Resistant up to 250° C (482° F) (sheet metal temperature)
Material: Silicone free HT2
Chemical Resistance: Oil, water, grease, hydraulic fluid, alcohol

Holding Capacity - Horizontal Dry (kg)	11.2
Holding Capacity - Horizontal Dry (lbf)	24.7
Holding Capacity - Horizontal Wet (kg)	10.2
Holding Capacity - Horizontal Wet (lbf)	22.5
Holding Capacity - Vertical Lift (kg)	14.3
Holding Capacity - Vertical Lift (lbf)	31.5
Weight (g)	65.1
Weight (oz)	2.3
Length (mm)	85.0
Length (in)	3.350
Width (mm)	43.0
Width (in)	1.690
Material	HT2
Durometer	HT (Black)
Mount	3/8 G
Temperature Range	Resistant up to 250°C
Chemical Resistance	Oil, water, grease, hydraulic fluid, alcohol
Shape	Oval
Product Type	Hot Forming Flat
Cup Size	80 x 40 mm
Product Series Description	Nitrile Rubber
