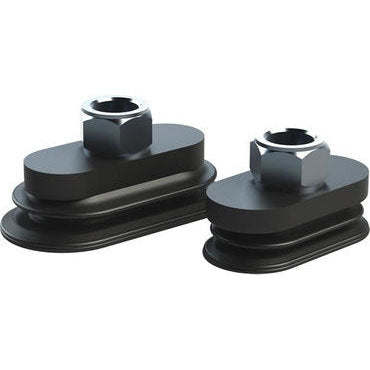

DESTACO CPI-8040MAC-B-HT 80mm x 40mm Oval Bellows Cup - 3/8 G - High Temperature

Brand: DESTACO

DESTACO CPI-8040MAC-B-HT 80mm x 40mm Oval Bellows Cup - 3/8 G - High Temperature

SKU: DE-STA-CO-CPI-8040MAC-B-HT
MPN: CPI-8040MAC-B-HT

  • $365.95
    Unit price per
  • Save $42.30
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

DESTACO CPI-8040MAC-B-HT 80mm x 40mm Oval Bellows Cup - 3/8 G - High Temperature
Oval bellows style vacuum cups designed special for high temperature hot form stamping applications
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-8040MAC-B-HT 80mm x 40mm Oval Bellows Cup - 3/8 G - High Temperature

Product Details

Oval bellows style vacuum cups designed specially for high-temperature hot form stamping applications

  • Temperature: Resistant up to 250° C (482° F) (sheet metal temperature)
  • Material: Silicone-free HT2
  • Chemical Resistant: Oil, water, grease, hydraulic fluid, alcohol
Holding Capacity - Horizontal Dry (kg) 100.0
Holding Capacity - Horizontal Dry (lbf) 22.5
Holding Capacity - Horizontal Wet (kg) 95.0
Holding Capacity - Horizontal Wet (lbf) 21.3
Holding Capacity - Vertical Lift (kg) 65
Holding Capacity - Vertical Lift (lbf) 14.6
Weight (g) 78.7
Weight (oz) 2.8
Length (mm) 83.0
Length (in) 3.270
Width (mm) 43.0
Width (in) 1.690
Material HT2
Durometer HT (Black)
Mount 3/8 G
Temperature Range Resistant up to 250°C (482°F) - Sheet Metal Temperature
Chemical Resistance Oil, water, grease, hydraulic fluid, alcohol
Shape Oval
Product Type Hot Forming Bellows
Cup Size 80 x 40 mm
Product Series Description Nitrile Rubber
