Brand: DESTACO

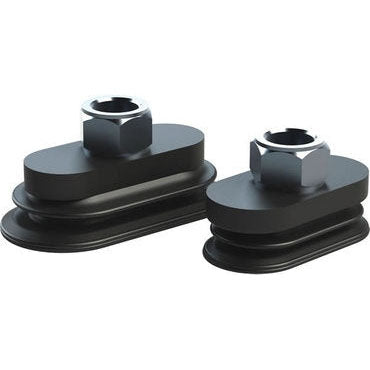

DESTACO CPI-6030MAC-B-HT 60mm x 30mm Oval Bellows Cup - 3/8 G - High Temperature
SKU: DE-STA-CO-CPI-6030MAC-B-HT
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-6030MAC-B-HT 60mm x 30mm Oval Bellows Cup is designed for high-temperature hot form stamping applications, with a temperature resistance up to 250°C (482°F). Made from silicone-free HT2 material, it is highly resistant to chemicals such as oil, water, grease, hydraulic fluid, and alcohol. The cup offers a horizontal holding capacity of 57.0 kg (12.8 lbf) dry and 52.0 kg (11.2 lbf) wet, as well as a vertical lift capacity of 38 kg (8.5 lbf). It has a length of 63.0 mm (2.480 inches), width of 33.0 mm (1.300 inches), and weighs 65.9 g (2.3 oz). The cup is mounted with a 3/8 G fitting, making it suitable for various industrial applications.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-6030MAC-B-HT 60mm x 30mm Oval Bellows Cup - 3/8 G - High Temperature
Product Details
Oval bellows style vacuum cups designed specially for high-temperature hot form stamping applications
- Temperature: Resistant up to 250° C (482° F) (sheet metal temperature)
- Material: Silicone free HT2
- Chemical Resistant: Oil, water, grease, hydraulic fluid, alcohol
| Holding Capacity - Horizontal Dry (kg) | 57.0 |
| Holding Capacity - Horizontal Dry (lbf) | 12.8 |
| Holding Capacity - Horizontal Wet (kg) | 52.0 |
| Holding Capacity - Horizontal Wet (lbf) | 11.2 |
| Holding Capacity - Vertical Lift (kg) | 38 |
| Holding Capacity - Vertical Lift (lbf) | 8.5 |
| Weight (g) | 65.9 |
| Weight (oz) | 2.3 |
| Length (mm) | 63.0 |
| Length (in) | 2.480 |
| Width (mm) | 33.0 |
| Width (in) | 1.300 |
| Material | HT2 |
| Durometer | HT (Black) |
| Mount | 3/8 G |
| Temperature Range | Resistant up to 250°C (482°F) - Sheet Metal Temperature |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Oval |
| Product Type | Hot Forming Bellows |
| Cup Size | 60 x 30 mm |
| Product Series Description | Nitrile Rubber |
