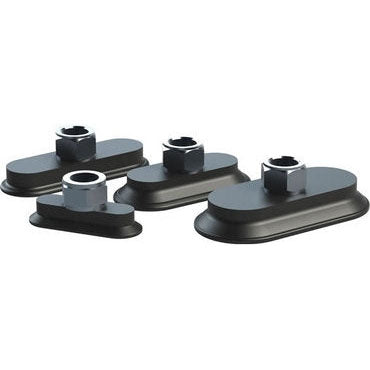

DESTACO CPI-6023MFF-B-HT 60mm x 23mm Oval Flat Foot Cup - 3/8 G - High Temperature

Brand: DESTACO

DESTACO CPI-6023MFF-B-HT 60mm x 23mm Oval Flat Foot Cup - 3/8 G - High Temperature

SKU: DE-STA-CO-CPI-6023MFF-B-HT
MPN: CPI-6023MFF-B-HT

  • $253.54
    Unit price per
  • Save $29.30
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO CPI-6023MFF-B-HT 60mm x 23mm Oval Flat Foot Cup is designed for high-temperature hot form stamping applications. It is resistant to temperatures up to 250°C (482°F) and made from silicone-free HT2 material, offering high chemical resistance to oil, water, grease, hydraulic fluid, and alcohol. The cup has a holding capacity of 3.8 kg (8.3 lbf) horizontally dry, 3.4 kg (7.4 lbf) horizontally wet, and 5.8 kg (12.8 lbf) vertically. With a length of 64.0 mm (2.520 inches) and width of 25.0 mm (0.980 inches), it weighs 44.6 g (1.6 oz). The mount features a 3/8 G fitting, making it suitable for various automation applications.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO CPI-6023MFF-B-HT 60mm x 23mm Oval Flat Foot Cup - 3/8 G - High Temperature

Product Details

Oval flatfoot style vacuum cups designed special for high temperature hot form stamping applications

  • Temperature: Resistant up to 250° C (482° F) (sheet metal temperature)
  • Material: Silicone free HT2
  • Chemical Resistance: Oil, water, grease, hydraulic fluid, alcohol
Holding Capacity - Horizontal Dry (kg) 3.8
Holding Capacity - Horizontal Dry (lbf) 8.3
Holding Capacity - Horizontal Wet (kg) 3.4
Holding Capacity - Horizontal Wet (lbf) 7.4
Holding Capacity - Vertical Lift (kg) 5.8
Holding Capacity - Vertical Lift (lbf) 12.8
Weight (g) 44.6
Weight (oz) 1.6
Length (mm) 64.0
Length (in) 2.520
Width (mm) 25.0
Width (in) 0.980
Material HT2
Durometer HT (Black)
Mount 3/8 G
Temperature Range Resistant up to 250°C
Chemical Resistance Oil, water, grease, hydraulic fluid, alcohol
Shape Oval
Product Type Hot Forming Flat
Cup Size 60 x 23 mm
Product Series Description Nitrile Rubber
