Brand: DESTACO

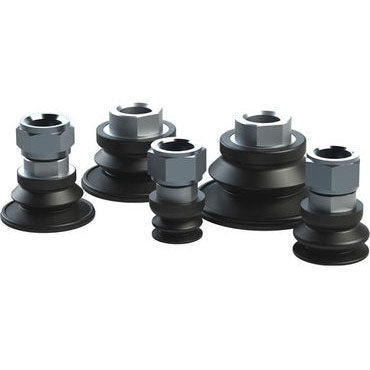

DESTACO CPI-50MTC-B-HT 50mm Traction Cup - 3/8 G - High Temperature

SKU: DE-STA-CO-CPI-50MTC-B-HT
MPN: CPI-50MTC-B-HT

$262.31
Unit price per
Save $30.33

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO CPI-50MTC-B-HT 50mm Traction Cup is a round bellows style vacuum cup specifically designed for high-temperature hot form stamping applications. It is temperature-resistant up to 250°C (482°F), making it ideal for demanding industrial environments. Made from silicone-free HT2 material, it offers excellent chemical resistance against oil, water, grease, hydraulic fluid, and alcohol. The cup has a diameter of 56.0 mm (2.200 inches) and provides impressive holding capacities: 5.6 kg (12.4 lbf) horizontally when dry, 5.3 kg (11.7 lbf) horizontally when wet, and 5.4 kg (11.9 lbf) for vertical lift. Weighing 39.6 g (1.4 oz), it is mounted using a 3/8 G fitting, making it versatile for automation and workholding tasks under high-temperature conditions.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-50MTC-B-HT 50mm Traction Cup - 3/8 G - High Temperature

Product Details

Round bellows style vacuum cups designed special for high temperature hot form stamping applications

Temperature: Resistant up to 250° C (482° F) (sheet metal temperature)
Material: Silicone free HT2
Chemical Resistance: Oil, water, grease, hydraulic fluid, alcohol

Holding Capacity - Horizontal Dry (kg)	5.6
Holding Capacity - Horizontal Dry (lbf)	12.4
Holding Capacity - Horizontal Wet (kg)	5.3
Holding Capacity - Horizontal Wet (lbf)	11.7
Holding Capacity - Vertical Lift (kg)	5.4
Holding Capacity - Vertical Lift (lbf)	11.9
Weight (g)	39.6
Weight (oz)	1.4
Diameter (mm)	56.0
Diameter (in)	2.200
Material	HT2
Durometer	HT (Black)
Mount	3/8 G
Temperature Range	Resistant up to 250°C
Chemical Resistance	Oil, water, grease, hydraulic fluid, alcohol
Shape	Round
Product Type	Hot Forming Bellows
Cup Size	50 mm
Product Series Description	Nitrile Rubber
