Brand: DESTACO

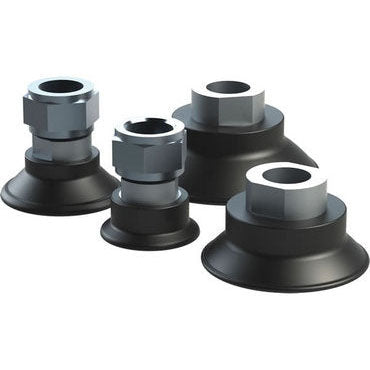

DESTACO CPI-50MFF-B-HT 50mm Flat Foot Cup - 3/8 G - High Temperature

SKU: DE-STA-CO-CPI-50MFF-B-HT
MPN: CPI-50MFF-B-HT

$166.90
Unit price per
Save $19.29

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO CPI-50MFF-B-HT 50mm Flat Foot Cup is designed for high-temperature applications, particularly in hot form stamping. It can withstand temperatures up to 250°C (482°F), with silicone-free HT2 material providing excellent chemical resistance to oil, water, grease, hydraulic fluid, and alcohol. This vacuum cup has a diameter of 56.0 mm (2.200 inches) and offers impressive holding capacities: 86.6 kg (18.0 lbf) horizontally when dry, 7.7 kg (17.1 lbf) horizontally when wet, and 10.2 kg (22.5 lbf) for vertical lift. Weighing 38.2 g (1.4 oz), it is mounted using a 3/8 G fitting, making it suitable for various automation and workholding tasks at high temperatures.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-50MFF-B-HT 50mm Flat Foot Cup - 3/8 G - High Temperature

Product Details

Round flatfoot style vacuum cups designed special for high temperature hot form stamping applications

Temperature: Resistant up to 250° C (482° F) (sheet metal temperature)
Material: Silicone free HT2
Chemical Resistance: Oil, water, grease, hydraulic fluid, alcohol

Holding Capacity - Horizontal Dry (kg)	86.6
Holding Capacity - Horizontal Dry (lbf)	18.0
Holding Capacity - Horizontal Wet (kg)	7.7
Holding Capacity - Horizontal Wet (lbf)	17.1
Holding Capacity - Vertical Lift (kg)	10.2
Holding Capacity - Vertical Lift (lbf)	22.5
Weight (g)	38.2
Weight (oz)	1.4
Diameter (mm)	56.0
Diameter (in)	2.200
Material	HT2
Durometer	HT (Black)
Mount	3/8 G
Temperature Range	Resistant up to 250°C
Chemical Resistance	Oil, water, grease, hydraulic fluid, alcohol
Shape	Round
Product Type	Hot Forming Flat
Cup Size	50 mm
Product Series Description	Nitrile Rubber
