Brand: DESTACO

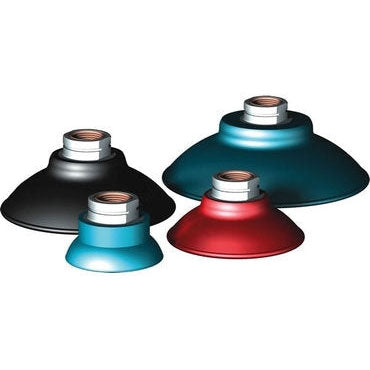

DESTACO CPI-50FF-B-30 CUP FF 5in. B-MT BLUE

SKU: DE-STA-CO-CPI-50FF-B-30
MPN: CPI-50FF-B-30

$37.02
Unit price per
Save $4.27

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Introducing the DESTACO CPI-50FF-B-30 CUP FF 5in. B-MT BLUE - the ultimate tool for all your flatfoot vacuum cup needs! Perfect for moderately flat to medium contour surfaces, these cups provide a strong grip and can hold up to 70.0 lbf (31.8 kg) in horizontal dry conditions and 55.0 lbf (24.9 kg) in horizontal wet conditions. For vertical lift, they can handle an impressive 165 lbf (74.8 kg). Made with Nitrile Durometer 30 material in a striking blue color, these 5in. cups are not only durable, but also add a touch of style to your workspace. Weighing only 5.6 oz (159.0 g), these cups are lightweight yet sturdy. The 3/8" NPT mount ensures easy and secure installation. Upgrade your automation vacuum cup game with DESTACO CPI-50FF-B-30.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-50FF-B-30 CUP FF 5in. B-MT BLUE

Product Details

Flatfoot vacuum cups are best used on moderately flat to medium contour, dry surfaces

Holding Capacity - Horizontal Dry (kg)	0.0
Holding Capacity - Horizontal Dry (lbf)	70.0
Holding Capacity - Horizontal Wet (kg)	0.0
Holding Capacity - Horizontal Wet (lbf)	55.0
Holding Capacity - Vertical Lift (kg)	74.8
Holding Capacity - Vertical Lift (lbf)	165
Weight (g)	159.0
Weight (oz)	5.6
Diameter (mm)	127.0
Diameter (in)	5.000
Material	Nitrile
Durometer	30 (Blue)
Mount	3/8" NPT
Temperature Range	15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C)
Chemical Resistance	Oil, water, grease, hydraulic fluid, alcohol
Shape	Round
Product Type	Flatfoot
Cup Size	5.00 in
