Brand: DESTACO

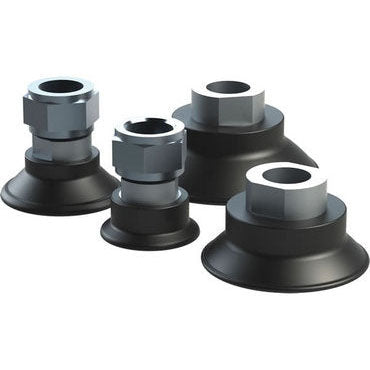

DESTACO CPI-40MFF-B-HT 40mm Flat Foot Cup - 3/8 G - High Temperature
SKU: DE-STA-CO-CPI-40MFF-B-HT
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-40MFF-B-HT 40mm Flat Foot Cup is engineered for high-temperature hot form stamping applications, resistant to temperatures up to 250°C (482°F). Made from silicone-free HT2 material, it offers chemical resistance to oil, water, grease, hydraulic fluid, and alcohol. The cup has a diameter of 46 mm (1.810 in) and weighs 50.1 g (1.8 oz). Its holding capacities are 5.3 kg (11.7 lbf) horizontally dry, 5.1 kg (11.2 lbf) horizontally wet, and 7 kg (15.5 lbf) for vertical lift. The mount connection is 3/8 G.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-40MFF-B-HT 40mm Flat Foot Cup - 3/8 G - High Temperature
Product Details
Round flatfoot style vacuum cups designed special for high temperature hot form stamping applications
- Temperature: Resistant up to 250° C (482° F) (sheet metal temperature)
- Material: Silicone free HT2
- Chemical Resistance: Oil, water, grease, hydraulic fluid, alcohol
| Holding Capacity - Horizontal Dry (kg) | 5.3 |
| Holding Capacity - Horizontal Dry (lbf) | 11.7 |
| Holding Capacity - Horizontal Wet (kg) | 5.1 |
| Holding Capacity - Horizontal Wet (lbf) | 11.2 |
| Holding Capacity - Vertical Lift (kg) | 7 |
| Holding Capacity - Vertical Lift (lbf) | 15.5 |
| Weight (g) | 50.1 |
| Weight (oz) | 1.8 |
| Diameter (mm) | 46.0 |
| Diameter (in) | 1.810 |
| Material | HT2 |
| Durometer | HT (Black) |
| Mount | 3/8 G |
| Temperature Range | Resistant up to 250°C |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Hot Forming Flat |
| Cup Size | 40 mm |
| Product Series Description | Nitrile Rubber |
