Brand: DESTACO

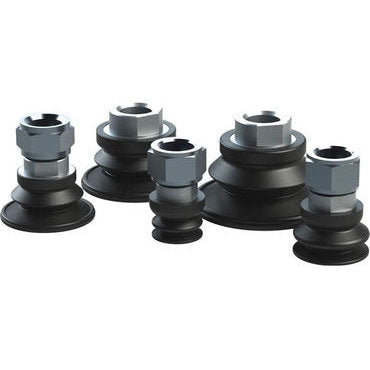

DESTACO CPI-30MTC-B-HT 30mm Traction Cup - 3/8 G - High Temperature
SKU: DE-STA-CO-CPI-30MTC-B-HT
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-30MTC-B-HT is a high-temperature round bellows style vacuum cup designed for hot form stamping applications. It is resistant to temperatures up to 250°C (482°F) and made from silicone-free HT2 material. The cup offers chemical resistance to oil, water, grease, hydraulic fluid, and alcohol. Its holding capacities include 3.1 kg (6.7 lbf) for horizontal dry, 1.3 kg (2.9 lbf) for horizontal wet, and 2.2 kg (4.9 lbf) for vertical lift. The cup has a diameter of 34 mm (1.34 inches), weighs 49.3 g (1.7 oz), and features a 3/8 G mount.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-30MTC-B-HT 30mm Traction Cup - 3/8 G - High Temperature
Product Details
Round bellows style vacuum cups designed special for high temperature hot form stamping applications
- Temperature: Resistant up to 250° C (482° F) (sheet metal temperature)
- Material: Silicone free HT2
- Chemical Resistance: Oil, water, grease, hydraulic fluid, alcohol
Holding Capacity - Horizontal Dry (kg) | 3.1 |
Holding Capacity - Horizontal Dry (lbf) | 6.7 |
Holding Capacity - Horizontal Wet (kg) | 1.3 |
Holding Capacity - Horizontal Wet (lbf) | 2.9 |
Holding Capacity - Vertical Lift (kg) | 2.2 |
Holding Capacity - Vertical Lift (lbf) | 4.9 |
Weight (g) | 49.3 |
Weight (oz) | 1.7 |
Diameter (mm) | 34.0 |
Diameter (in) | 1.340 |
Material | HT2 |
Durometer | HT (Black) |
Mount | 3/8 G |
Temperature Range | Resistant up to 250°C |
Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
Shape | Round |
Product Type | Hot Forming Bellows |
Cup Size | 30 mm |
Product Series Description | Nitrile Rubber |
