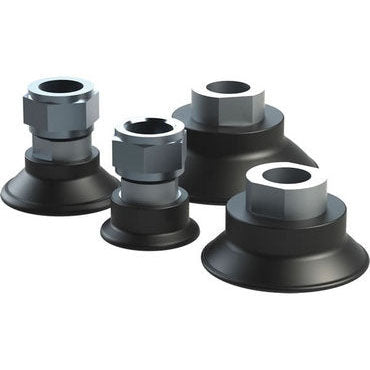

DESTACO CPI-30MFF-B-HT 30mm Flat Foot Cup - 3/8 G - High Temperature

Brand: DESTACO

DESTACO CPI-30MFF-B-HT 30mm Flat Foot Cup - 3/8 G - High Temperature

SKU: DE-STA-CO-CPI-30MFF-B-HT
MPN: CPI-30MFF-B-HT

  • $143.05
    Unit price per
  • Save $16.54
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO CPI-30MFF-B-HT is a high-temperature, round flat foot vacuum cup designed for hot form stamping applications. It is resistant to temperatures up to 250°C (482°F) and is made from silicone-free HT2 material. This cup offers chemical resistance to oil, water, grease, hydraulic fluid, and alcohol. Its holding capacities include 3.1 kg (6.7 lbf) for horizontal dry, 2.9 kg (6.3 lbf) for horizontal wet, and 3.9 kg (8.5 lbf) for vertical lift. The cup has a diameter of 34 mm (1.34 inches), weighs 46.5 g (1.6 oz), and features a 3/8 G mount.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO CPI-30MFF-B-HT 30mm Flat Foot Cup - 3/8 G - High Temperature

Product Details

Round flatfoot style vacuum cups designed special for high temperature hot form stamping applications

  • Temperature: Resistant up to 250° C (482° F) (sheet metal temperature)
  • Material: Silicone free HT2
  • Chemical Resistance: Oil, water, grease, hydraulic fluid, alcohol
Holding Capacity - Horizontal Dry (kg) 3.1
Holding Capacity - Horizontal Dry (lbf) 6.7
Holding Capacity - Horizontal Wet (kg) 2.9
Holding Capacity - Horizontal Wet (lbf) 6.3
Holding Capacity - Vertical Lift (kg) 3.9
Holding Capacity - Vertical Lift (lbf) 8.5
Weight (g) 46.5
Weight (oz) 1.6
Diameter (mm) 34.0
Diameter (in) 1.340
Material HT2
Durometer HT (Black)
Mount 3/8 G
Temperature Range Resistant up to 250°C
Chemical Resistance Oil, water, grease, hydraulic fluid, alcohol
Shape Round
Product Type Hot Forming Flat
Cup Size 30 mm
Product Series Description Nitrile Rubber
