Brand: DESTACO

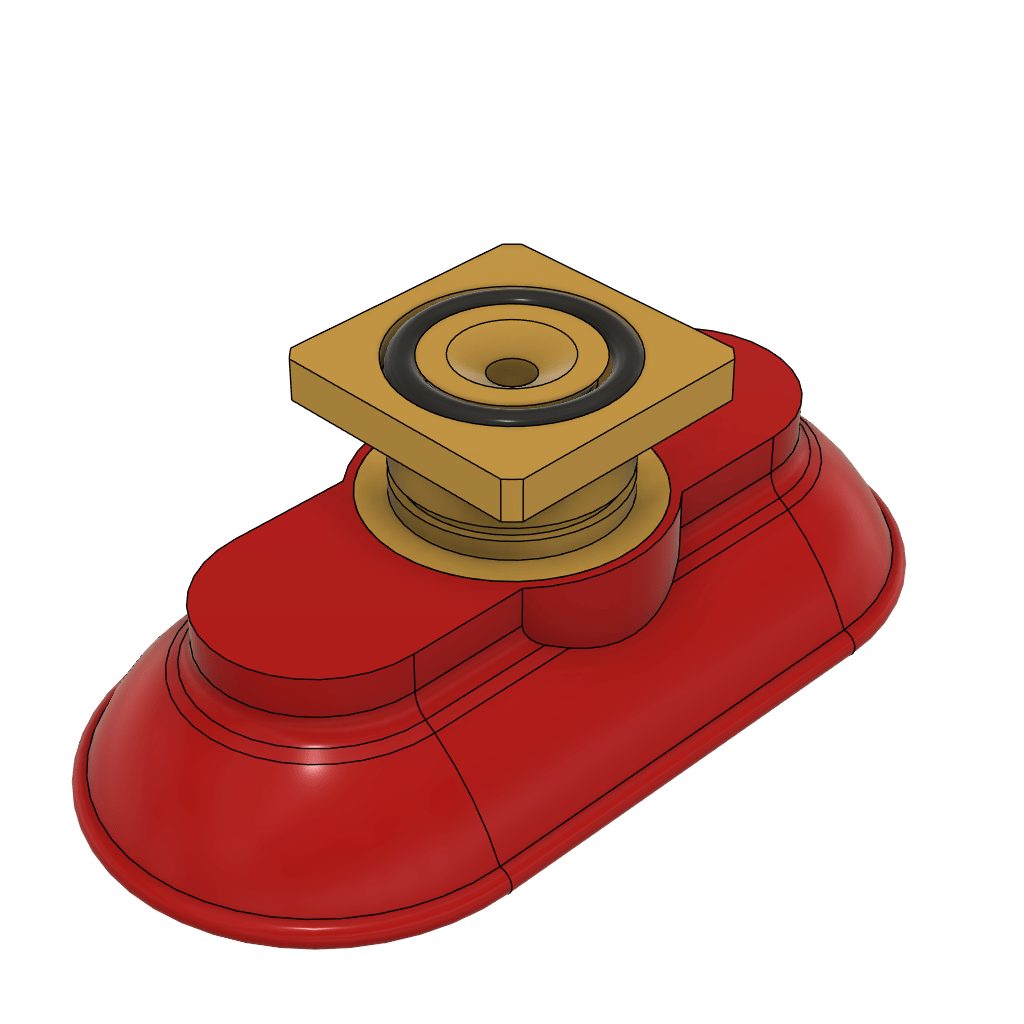

DESTACO CPI-24FF-C-45 CUP FF 2in. X 4in. C-MT RED

SKU: DE-STA-CO-CPI-24FF-C-45
MPN: CPI-24FF-C-45

$36.99
Unit price per
Save $4.28

Shipping calculated at checkout.

In-Stock: 4

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Enhance your automation vacuum system with the powerful DESTACO CPI-24FF-C-45 CUP FF 2in. X 4in. C-MT RED! These oval flatfoot cups are perfect for moderately flat to medium contour dry surfaces. With a holding capacity of 8.2 kg (18.0 lbf) in the horizontal dry direction, 2.7 kg (6.0 lbf) in the horizontal wet direction, and an impressive 19.1 kg (42 lbf) in vertical lift, these cups are a versatile and reliable addition to your toolkit. Weighing only 119.0 g (4.2 oz), measuring 101.6 mm (4.000 in) in length and 50.8 mm (2.000 in) in width, and made with durable nitrile material with a durometer of 45 (Red), these cups are designed to provide a strong and sturdy hold.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-24FF-C-45 CUP FF 2in. X 4in. C-MT RED

Product Details

Oval flatfoot vacuum cups are best used on moderately flat to medium contour, dry surfaces

Holding Capacity - Horizontal Dry (kg)	8.2
Holding Capacity - Horizontal Dry (lbf)	18.0
Holding Capacity - Horizontal Wet (kg)	2.7
Holding Capacity - Horizontal Wet (lbf)	6.0
Holding Capacity - Vertical Lift (kg)	19.1
Holding Capacity - Vertical Lift (lbf)	42
Weight (g)	119.0
Weight (oz)	4.2
Length (mm)	101.6
Length (in)	4.000
Width (mm)	50.8
Width (in)	2.000
Material	Nitrile
Durometer	45 (Red)
Mount	1.25" Square
Temperature Range	15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C)
Chemical Resistance	Oil, water, grease, hydraulic fluid, alcohol
Shape	Oval
Product Type	Flatfoot
Cup Size	2.00 x 4.00 in
Product Series Description	Nitrile Rubber
