Brand: DESTACO

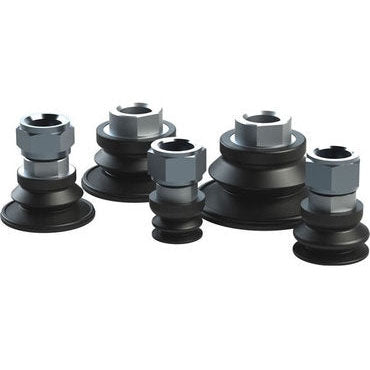

DESTACO CPI-22MTC-B-HT 22mm Traction Cup - 3/8 G - High Temperature
SKU: DE-STA-CO-CPI-22MTC-B-HT
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-22MTC-B-HT Traction Cup is expertly designed for high-temperature hot form stamping applications, withstanding sheet metal temperatures up to 250°C (482°F). Made from silicone-free HT2 material, it offers excellent chemical resistance to oil, water, grease, hydraulic fluid, and alcohol. With a compact diameter of 22 mm (0.870 inches), this lightweight vacuum cup (43.6 g / 1.5 oz) provides reliable holding capacities, including 2 kg (4 lbf) for vertical lifting. Its durable 3/8 G mount ensures secure and easy attachment, making it ideal for demanding automation tasks in extreme environments.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-22MTC-B-HT 22mm Traction Cup - 3/8 G - High Temperature
Round bellows style vacuum cups designed special for high temperature hot form stamping applications Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Temperature: Resistant up to 250‚° C (482‚° F) (sheet metal temperature)
- Material: Silicone free HT2
- Chemical Resistance: Oil, water, grease, hydraulic fluid, alcohol
| Holding Capacity - Horizontal Dry (kg) | 1.8 |
| Holding Capacity - Horizontal Dry (lbf) | 4.0 |
| Holding Capacity - Horizontal Wet (kg) | 0.6 |
| Holding Capacity - Horizontal Wet (lbf) | 1.3 |
| Holding Capacity - Vertical Lift (kg) | 2 |
| Holding Capacity - Vertical Lift (lbf) | 4 |
| Weight (g) | 43.6 |
| Weight (oz) | 1.5 |
| Diameter (mm) | 22.0 |
| Diameter (in) | 0.870 |
| Material | HT2 |
| Durometer | HT (Black) |
| Mount | 3/8 G |
| Temperature Range | Resistant up to 250‚°C |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Hot Forming Bellows |
| Cup Size | 22 mm |
| Cup Size | 0.87 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
