Brand: DESTACO

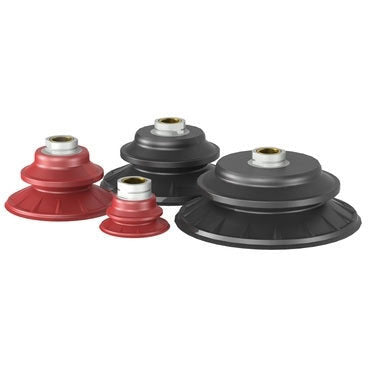

DESTACO CPI-20TC-C-60 2" Traction Cup - C-Mount - 60DUR Black
SKU: DE-STA-CO-CPI-20TC-C-60
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-20TC-C-60 2" Traction Cup - C-Mount - 60DUR Black is designed with flexible side walls and internal cleats for secure and slip-free handling of applications running at high speeds. Its wide skirt and internal traction feet make it perfect for use on oily surfaces or for destacking parts. This traction cup comes in 60 shore "A" durometer, and can hold up to 3.9kg of weight horizontally and 10.3kg vertically. Its lightweight design, weighing only 37g, makes it a versatile and reliable option for any automation setting.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-20TC-C-60 2" Traction Cup - C-Mount - 60DUR Black
Product Details
Traction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation
- For oily surface or destacking applications
- Internal cleats hold parts more securely in high-speed applications
- Available in 45 or 60 shore "A" hardness durometers
| Holding Capacity - Horizontal Dry (kg) | 3.9 |
| Holding Capacity - Horizontal Dry (lbf) | 8.5 |
| Holding Capacity - Horizontal Wet (kg) | 3.2 |
| Holding Capacity - Horizontal Wet (lbf) | 7.0 |
| Holding Capacity - Vertical Lift (kg) | 10.3 |
| Holding Capacity - Vertical Lift (lbf) | 22.7 |
| Weight (g) | 37.0 |
| Weight (oz) | 1.3 |
| Diameter (mm) | 52.3 |
| Diameter (in) | 2.060 |
| Material | Nitrile |
| Durometer | 60 (Black) |
| Mount | 1.25" Square |
| Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Traction |
| Cup Size | 2.00 in |
| Product Series Description | Nitrile Rubber |
