Brand: DESTACO

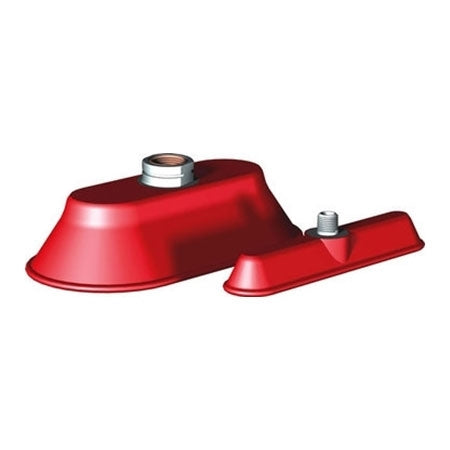

DESTACO CPI-15DD-B-45 CUP FLAT FOOT 1 X 5
SKU: DE-STA-CO-CPI-15DD-B-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-15DD-B-45 CUP FLAT FOOT 1 X 5 offers versatile and durable Oval Deep Dish Cups with thin, flexible side walls, making them ideal for highly contoured parts. With impressive holding capacities for both dry and wet conditions, this product also boasts a strong vertical lift capacity. It's lightweight and compact, weighing only 1.2 ounces and measuring 5.060 inches in length. The material, Nitrile Durometer 45 (Red), and mount of 3/8" NPT add to its overall value and functionality.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-15DD-B-45 CUP FLAT FOOT 1 X 5
Product Details
Oval Deep Dish Cups have thin, deep side walls that are very flexible for highly contoured parts
| Holding Capacity - Horizontal Dry (kg) | 10.0 |
| Holding Capacity - Horizontal Dry (lbf) | 22.0 |
| Holding Capacity - Horizontal Wet (kg) | 3.2 |
| Holding Capacity - Horizontal Wet (lbf) | 7.0 |
| Holding Capacity - Vertical Lift (kg) | 15.9 |
| Holding Capacity - Vertical Lift (lbf) | 35 |
| Weight (g) | 35.0 |
| Weight (oz) | 1.2 |
| Length (mm) | 128.7 |
| Length (in) | 5.060 |
| Width (mm) | 27.0 |
| Width (in) | 1.060 |
| Material | Nitrile |
| Durometer | 45 (Red) |
| Mount | 3/8" NPT |
| Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Oval |
| Product Type | Deepdish |
| Cup Size | 1.00 x 5.00 in |
| Product Series Description | Nitrile Rubber |
