Brand: DESTACO

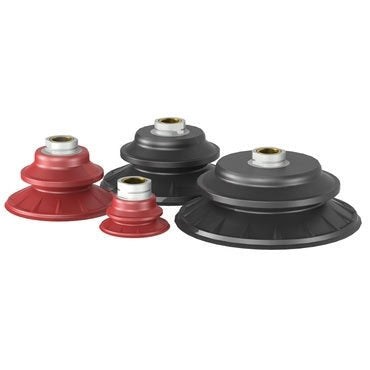

DESTACO CPI-140HT-B-45 CUP TC 140MM G3/8 MT RED
SKU: DE-STA-CO-CPI-140HT-B-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Inspire with DESTACO CPI-140HT-B-45 CUP TC 140MM G3/8 MT RED! Designed for high speed automation, these traction cups feature flexible side walls, a wide skirt, and internal traction feet to prevent sliding. Ideal for oily surfaces and destacking, with internal cleats for maximum security. Choose the 45 shore "A" hardness durometer cup.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-140HT-B-45 CUP TC 140MM G3/8 MT RED
Product Details
Traction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation
- For oily surface or destacking applications
- Internal cleats hold parts more securely in high-speed applications
- Available in 45 or 60 shore "A" hardness durometers
| Holding Capacity - Horizontal Dry (kg) | 45.5 |
| Holding Capacity - Horizontal Dry (lbf) | 100.0 |
| Holding Capacity - Horizontal Wet (kg) | 20.4 |
| Holding Capacity - Horizontal Wet (lbf) | 45.0 |
| Holding Capacity - Vertical Lift (kg) | 74.4 |
| Holding Capacity - Vertical Lift (lbf) | 164 |
| Weight (g) | 204.0 |
| Weight (oz) | 7.2 |
| Diameter (mm) | 139.7 |
| Diameter (in) | 5.500 |
| Material | Nitrile |
| Durometer | 45 (Red) |
| Mount | 3/8 G |
| Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Traction |
| Cup Size | 140 mm |
| Product Series Description | Nitrile Rubber |
