Brand: Iscar

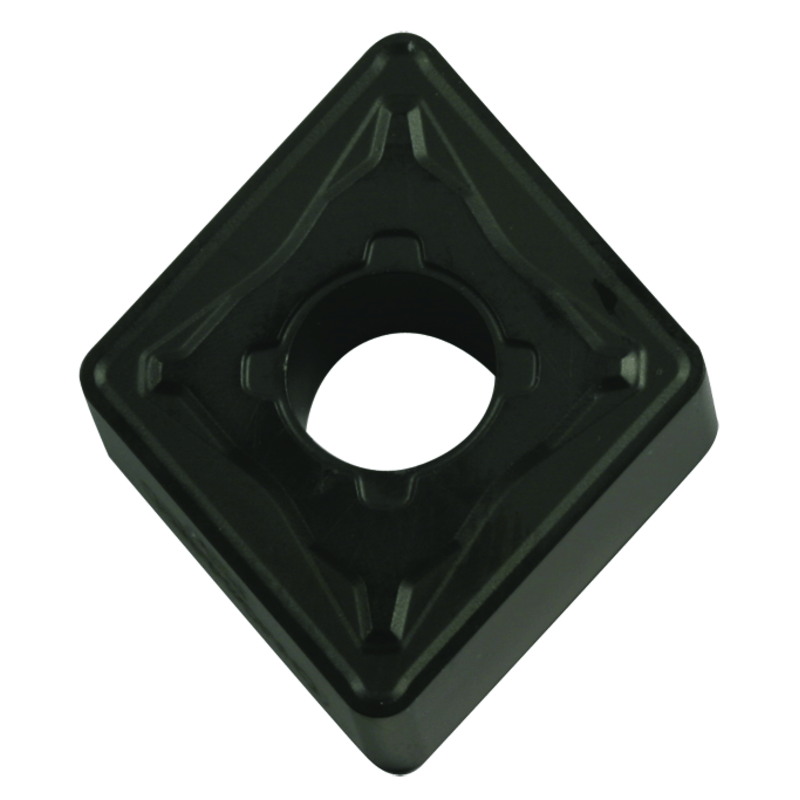

Iscar EH5505377 CNMG 542-TF IC907
SKU: FTS-EH5505377
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5505377 CNMG 542-TF IC907Full Description
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Insert | Int. 80° Diamond 95° Approach | | Fixing Hole Diameter (D1) | 1/4" |
| Insert Style | CNMG | Min D.O.C. | 0.039" |
| Corner Radius (RE) | 0.0315" | Depth of Cut Maximum (APMX) | 0.236" |
| Insert Size | 542 | Min. Turning Feed (ft(min)) | 0.0047 "/rev |
| Cutting Edge Length (L) | 0.635" | Max. Turning Feed (ft(max)) | 0.0138 "/rev |
| Insert Thickness (S) | 1/4" | Chip Breaker Type | TF |
| Inscribed Circle Diameter (IC) | 5/8" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | TiAlN+TiN | Series/List # | CNMG 542-TF |
| Grade | IC907 | Body Material | Carbide |
Family Description
Double-sided 80° rhombic inserts, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys.
For dimensions and tolerances, see more info.
