Brand: Iscar

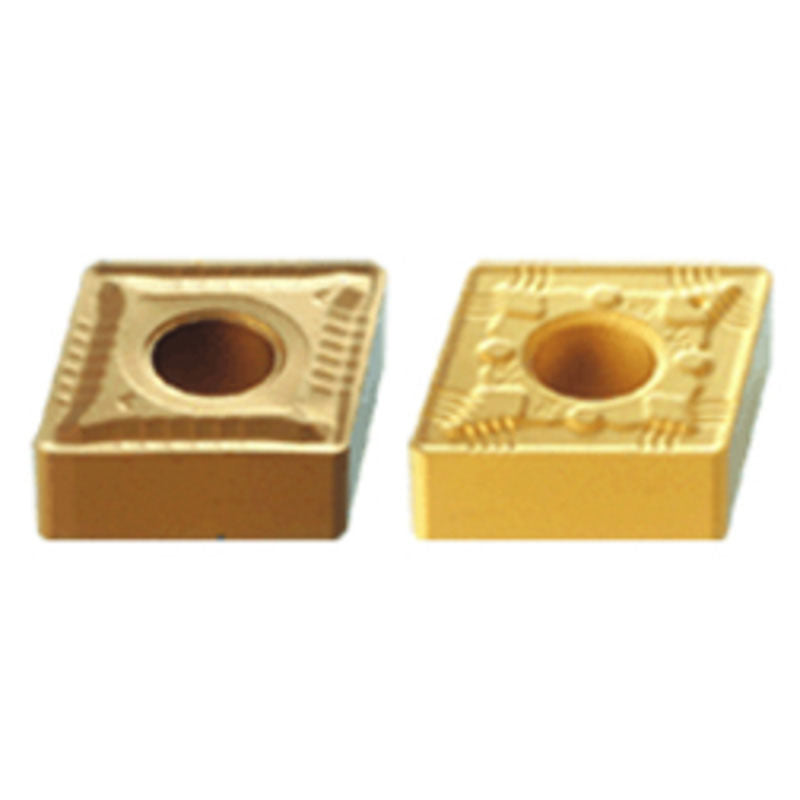

Iscar EH5550248 CNMG 432-WG IC807
SKU: FTS-EH5550248
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5550248 CNMG 432-WG IC807Full Description
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Insert | Int. 80° Diamond 95° Approach | | Fixing Hole Diameter (D1) | 0.203" |
| Insert Style | CNMG | Min D.O.C. | 0.031" |
| Corner Radius (RE) | 0.0315" | Depth of Cut Maximum (APMX) | 0.138" |
| Insert Size | 432 | Min. Turning Feed (ft(min)) | 0.0039 "/rev |
| Cutting Edge Length (L) | 0.508" | Max. Turning Feed (ft(max)) | 0.0197 "/rev |
| Insert Thickness (S) | 0.187" | Chip Breaker Type | WG |
| Inscribed Circle Diameter (IC) | 1/2" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | TiAlN+TiN | Series/List # | CNMG 432-WG |
| Grade | IC807 | Body Material | Carbide |
Family Description
Double-sided 80° rhombic wiper inserts for high surface finish at high feed turning (.012 to .024 ipr). Three to five times better surface finish compared to standard turning inserts at the same feeds.
For dimensions and tolerances, see more info.
