Brand: Iscar

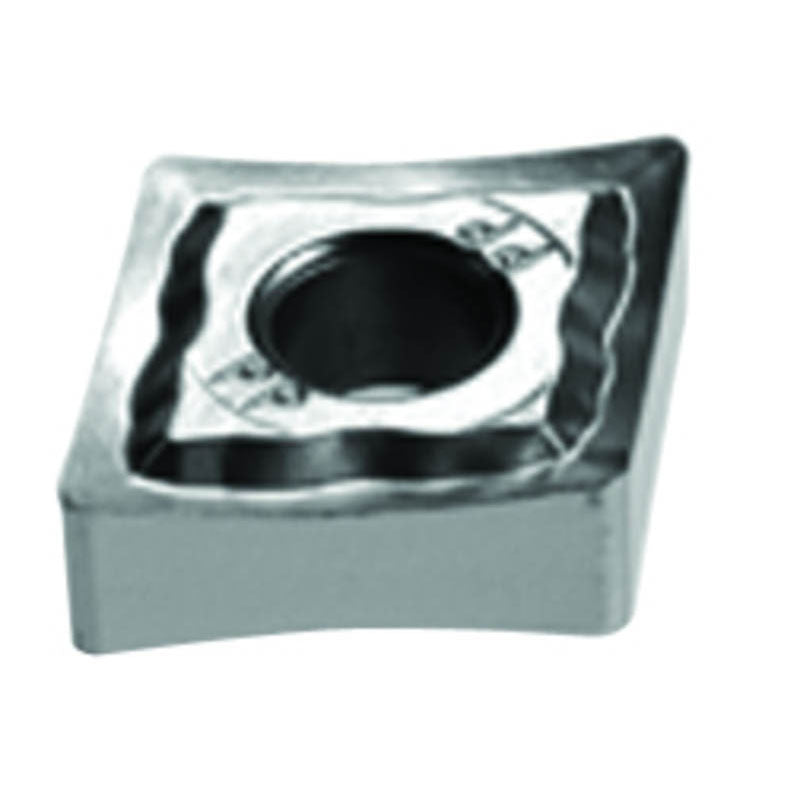

Iscar EH5502785 CNMG 432-PP IC10
SKU: FTS-EH5502785
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5502785 CNMG 432-PP IC10Full Description
| Applicable Material | | Cast Iron | Non Ferrous Metals | Hi Temp Alloys | | Fixing Hole Diameter (D1) | 0.203" |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Insert | Int. 80° Diamond 95° Approach | | Min D.O.C. | 0.039" |
| Insert Style | CNMG | Depth of Cut Maximum (APMX) | 0.157" |
| Corner Radius (RE) | 0.0315" | Min. Turning Feed (ft(min)) | 0.0055 "/rev |
| Insert Size | 432 | Max. Turning Feed (ft(max)) | 0.0118 "/rev |
| Cutting Edge Length (L) | 0.508" | Chip Breaker Type | PP |
| Insert Thickness (S) | 0.187" | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2" | Shape | 80° Rhombic |
| Cutting Edge Material | Carbide | Series/List # | CNMG 432-PP |
| Grade | IC10 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts |
Family Description
Double-sided 80° rhombic inserts with a positive rake angle and sharp, positive radial edge. Used for machining very ductile materials like aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys.
For dimensions and tolerances, see more info.
