Brand: Iscar

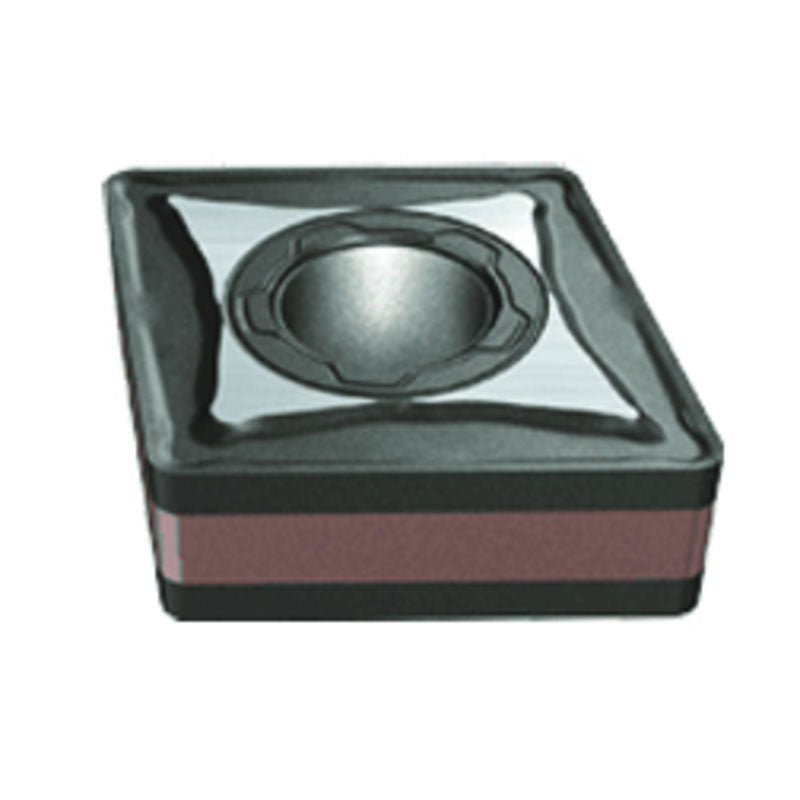

Iscar EH5510330 CNMG 331-M3M IC6015
SKU: FTS-EH5510330
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5510330 CNMG 331-M3M IC6015Full Description
| Applicable Material | | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Insert | Int. 80° Diamond 95° Approach | | Fixing Hole Diameter (D1) | 0.15" |
| Insert Style | CNMG | Min D.O.C. | 0.016" |
| Corner Radius (RE) | 0.0157" | Depth of Cut Maximum (APMX) | 0.157" |
| Insert Size | 331 | Min. Turning Feed (ft(min)) | 0.0047 "/rev |
| Cutting Edge Length (L) | 0.381" | Max. Turning Feed (ft(max)) | 0.0157 "/rev |
| Insert Thickness (S) | 0.187" | Chip Breaker Type | M3M |
| Inscribed Circle Diameter (IC) | 3/8" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | TiCN+Al2O3+TiN | Series/List # | CNMG 331-M3M |
| Grade | IC6015 | Body Material | Carbide |
Family Description
Double-sided 80° rhombic inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life.
For dimensions and tolerances, see more info.
