Brand: INDUSTRIAL MAGNETICS
Industrial Magnetics Smart-Mag® Polymag Pair - 180 Deg. Latch CMP2M1012L18
SKU: IM-CMP2M1012L18
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industrial Magnetics Smart-Mag Polymag Pair - 180 Deg. Latch CMP2M1012L18. Latch Magnets. Controlled magnetic attach and release functions.*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Industrial Magnetics Smart-Mag® Polymag Pair - 180 Deg. Latch CMP2M1012L18
Latch Magnets
Controlled magnetic attach and release functions
Push-Latch Smart-Mag®
Push-Latch programmed magnets are produced in matched pairs and will repel until they pass through the zero-force transition point - a specific and pre-determined distance - where they will then attract and attach. They do not have a bias to axially align, so they must be mechanically constrained to perform properly.

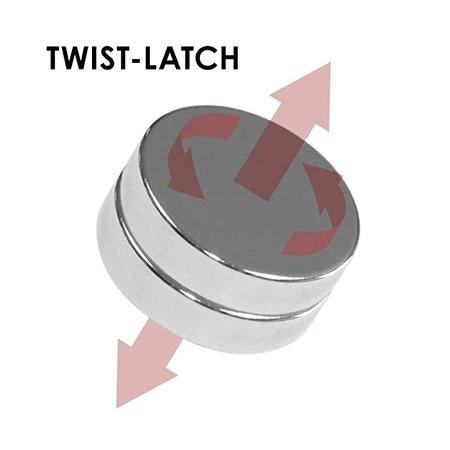

Twist-Latch Smart-Mag®
Twist-Latch magnets are similar to Push-Latch magnets, as they will repel until they pass and/or rotate through, the zero-force transition point where they will attract and attach. They differ by having an alignment pattern that will repel or release the magnets when one magnet is rotated into a specific orientation. The angle of rotation can be varied as well as the balance of attract and repel forces.
Polymagnet® is a trademark of Correlated Magnetics Research.
| Round Disc Rare Earth Push-Latch Smart-Mag® Raw Material (Sold in pairs) | ||||
| Part No. | Dia. (in) | Ln. (in) | Snap Distance (in) | Attachment Force (lbs) |
|---|---|---|---|---|
| CMP2M0712RS1 | 0.75 | 0.125 | 0.12 | 4.5 |
| CMP2M1012RS2 | 1.00 | 0.125 | 0.15 | 7.0 |
| Round Disc Rare Earth Twist-Latch Smart-Mag® Raw Material (Sold in pairs) | |||||
| Part No. | Dia. (in) | Ln. (in) | Twist Angle (deg) | Unlatched Repel Force (lbs) | Latched Attachment Force (lbs) |
|---|---|---|---|---|---|
| CMP2M0712L12 | 0.75 | 0.125 | 120 | 5 | 7.2 |
| CMP2M0712L18 | 0.75 | 0.125 | 180 | 7.1 | 13.2 |
| CMP2M0712L36 | 0.75 | 0.125 | 360 | 4.4 | 10.1 |
| CMP2M1012L12 | 1.00 | 0.125 | 120 | 6.3 | 14.6 |
| CMP2M1012L18 | 1.00 | 0.125 | 180 | 12.3 | 18.5 |
| CMP2M1012L36 | 1.00 | 0.125 | 360 | 8.5 | 15.07 |
| CMP2M1512L12 | 1.50 | 0.125 | 120 | 7.1 | 31.3 |
| CMP2M1512L18 | 1.50 | 0.125 | 180 | 17.7 | 32 |
| CMP2M1512L36 | 1.50 | 0.125 | 360 | 12.5 | 19.8 |
| Ring Rare Earth Twist-Latch Smart-Mag® Raw Material (Sold in pairs) | ||||||
| Part No. | O.D. (in) | I.D. (in) | Ln. (in) | Twist Angle (deg) | Unlatched Repel Force (lbs) | Latched Attachment Force (lbs) |
|---|---|---|---|---|---|---|
| CMP2M071212L12 | 0.75 | 0.125 | 0.125 | 120 | 4.8 | 6.8 |
| CMP2M071212L18 | 0.75 | 0.125 | 0.125 | 180 | 6.9 | 12.8 |
| CMP2M071212L36 | 0.75 | 0.125 | 0.125 | 360 | 4 | 9.9 |
| CMP2M101812L12 | 1.00 | 0.1875 | 0.125 | 120 | 5.7 | 13.4 |
| CMP2M101812L18 | 1.00 | 0.1875 | 0.125 | 180 | 11.3 | 17.2 |
| CMP2M101812L36 | 1.00 | 0.1875 | 0.125 | 360 | 7.8 | 13.8 |
| CMP2M151212L12 | 1.50 | 0.125 | 0.125 | 120 | 6.5 | 28.7 |
| CMP2M151212L18 | 1.50 | 0.125 | 0.125 | 180 | 16.2 | 29.4 |
| CMP2M151212L36 | 1.50 | 0.125 | 0.125 | 360 | 11.5 | 18.2 |
