Brand: HALDER

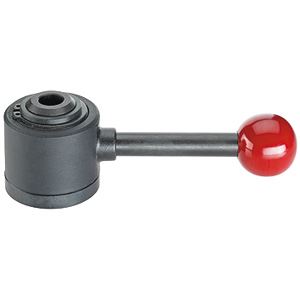

CLAMPING DEVICES ACTIMA - 23260.0012
SKU: EH-23260.0012
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Clamping Devices "actima"/right push / left pull | 23260.0012Halder 23260.0012 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Material
Housing
- Thermoplastic, black
Body
- Steel, blackened
Ball knob
- DIN 7708 - Thermosetting plastic (PF 31), red similar to RALá3003
Accessories
- Steel, blackened
Operation
Compact clamping element for pull and push clamping strain which can be converted by turning the pressure sleeve. The travel path is 10 mm. Within the short clamp travel of 2 mm, self-locking occurs in any position. The maximum clamping force allowed is 4,9 kN.
