Brand: HALDER

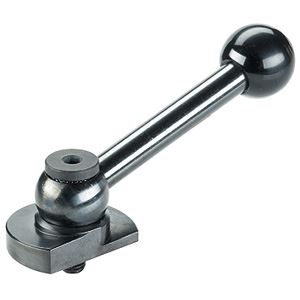

CLAMPING CATCHES - 22260.0450
SKU: EH-22260.0450
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Clamping Catches/with adjustable clamping lever, pitch on bearing surface | Steel | 22260.0450Halder 22260.0450 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Clamping catches have a round running taper surface and enable fast and safe clamping and releasing with a relatively large adjustment range and high tensioning force. Due to the small gradient angle of the taper surface, the clamping catch is self-locking.
Material
Body
- Steel, case-hardened, blackened
Screw
- Steel, nitrided
Gear lever handle
- Steel, ground, blackened
Ball knob
- Thermosetting plastic PF 31, black, DIN 319
Assembly
Fix with screw bolt M 10 (SW 6). Ensure a tightening torque of max. 40 Nm.
Operation
The screw bolt and the washer are adjustable. Once screwed in, the clamping catch can easily be turned to the desired position. For Art. No. 22260.0250 /á.0251 and 22260.0450 /á.0451, the serration helps to put the clamping lever to the preferred position.
Notes
Left turn type can be supplied on request.
