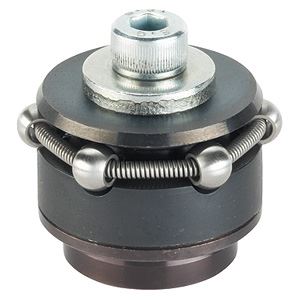

CENTERING CLAMPING ELEMENTS - 23340.0238
SKU: EH-23340.0238
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Centering Clamping Elements, with clamping balls | d1 min.=38.5 mm / d1 max.=46.5 mm | 23340.0238Halder 23340.0238 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
To be used for accurate centering and clamping of workpieces with locating hole on which light spherical marks are acceptable. Exact self-centering with a precision of –’0,025 mm. The clamping balls frictionally center and hold workpieces with raw or pre-machined surfaces down to the bearing points. Large adjustment stroke and a small building height are a feature of this center clamping element.
Mounting from either top or bottom.
Material
Body
- Tool steel, hardened, blackened
Spring
- Stainless steel
Clamping balls
- Stainless steel 1.4112, hardened and ground
Assembly
Assembly instruction for mounting from the top: Take-off clamping plate and screw. Fasten body by means of threaded pin via WS2.
