Brand: Iscar

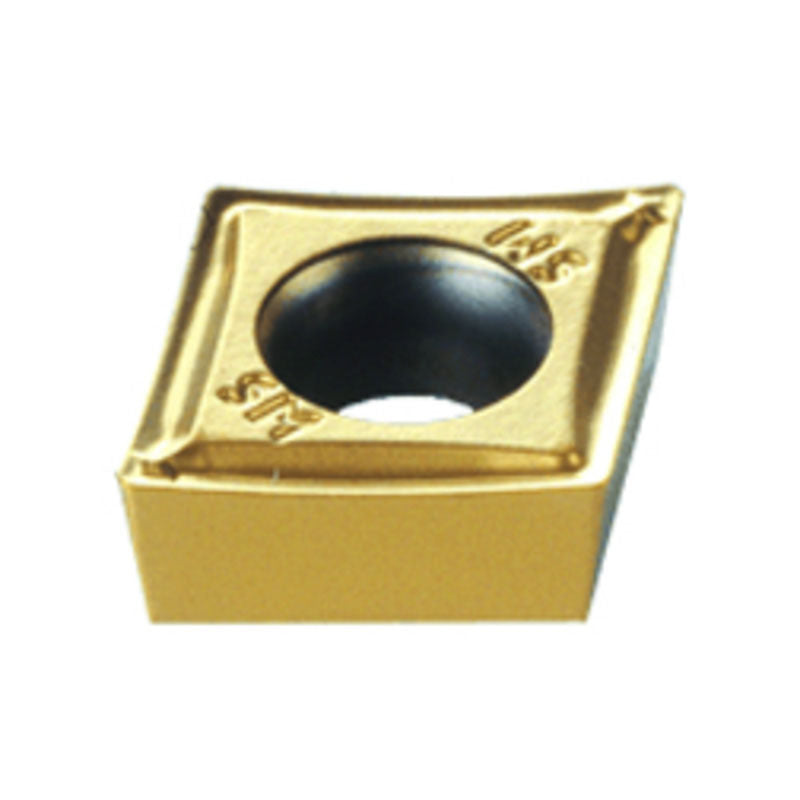

Iscar EH5508205 CCMT 432-SM IC8150
SKU: FTS-EH5508205
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5508205 CCMT 432-SM IC8150Full Description
| Applicable Material | | Steel | Cast Iron | | Fixing Hole Diameter (D1) | 0.217" |
| Application | | Ext. 80° Diamond 93° Approach | Ext. 80° Diamond 95° Approach | Insert | Int. 80° Diamond 95° Approach | Int. 80°Diamond 90° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Min D.O.C. | 0.028" |
| Insert Style | CCMT | Depth of Cut Maximum (APMX) | 0.138" |
| Corner Radius (RE) | 0.0315" | Min. Turning Feed (ft(min)) | 0.0027 "/rev |
| Insert Size | 432 | Max. Turning Feed (ft(max)) | 0.0118 "/rev |
| Cutting Edge Length (L) | 0.508" | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.187" | Chip Breaker Type | SM |
| Inscribed Circle Diameter (IC) | 1/2" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | TiCN+Al2O3+TiCN+TiN | Series/List # | CCMT 432-SM |
| Grade | IC8150 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
Family Description
Single-sided turning inserts for semi finish and finishing. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for soft materials and exotic alloys.
For dimensions and tolerances, Click on "More Info"
