Brand: Iscar

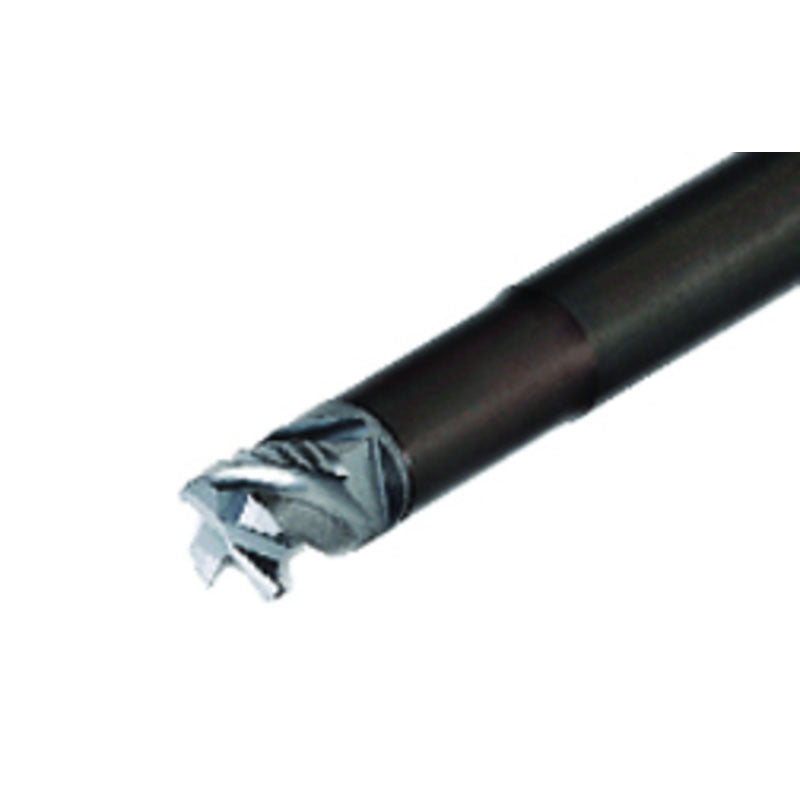

Iscar EH3103503 MM S-A-L3.50-C.312-T05-C
SKU: FTS-EH3103503
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3103503 MM S-A-L3.50-C.312-T05-CFull Description
| Connection Thread Nominal Size Workpiece Side (THSZWS) | T05 | Body Length (LB) | 1.45" |
| Connection Diameter Machine Side (DCONMS) | 0.312" | Weight of Item (WT) | 0.13 Lbs |
| Overall Length (OAL) | 3-1/2" | Measurement Type | Inch |
| Body Length Maximum (LBX) | 1-1/2" | Rotational Speed Maximum (RPMX) | 50160 Rev/min |
| Coolant Supply Property (CSP) | External | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 0.299" |
Family Description
MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.
For adaptation click on "More Info" Do not apply lubricant to the threaded connection
