Brand: Rego-Fix

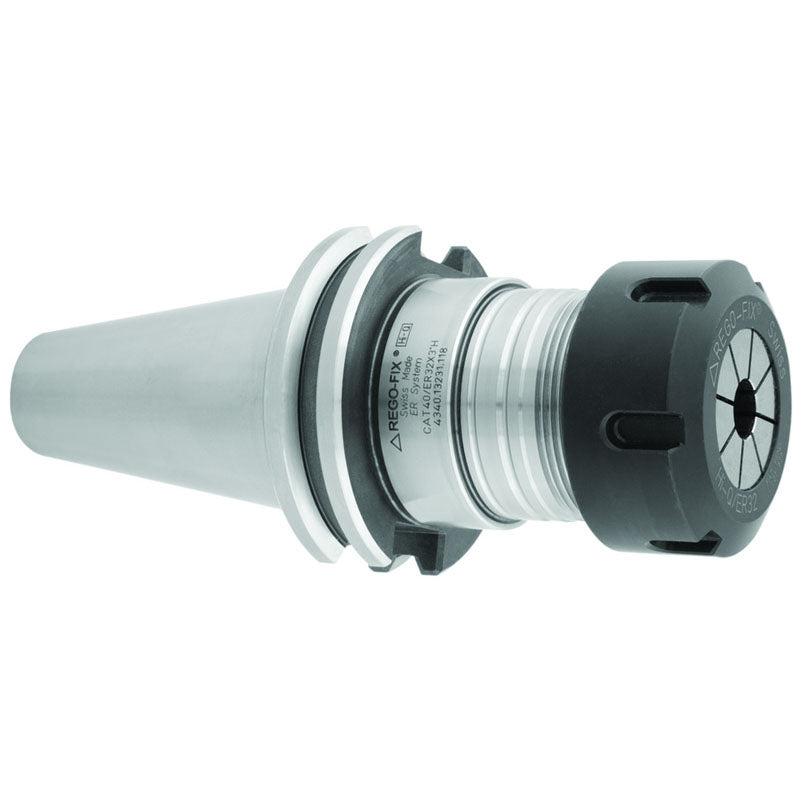

Rego-Fix GM20434013254 CAT40 x ER32 x 4" H Form B Collet Chuck
SKU: FTS-GM20434013254
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Rego-Fix 4340.13254 CAT40 x ER32 x 4" H Form B Collet ChuckFull Description
| Shank Size (SS) | #40 | Style | B |
| Connection Size (CSI) | #32 | Coolant Supply Property (CSP) | Coolant Thru |
| Body Diameter (BD) | 1.970" | Type | ER |
| Protruding Length (LPR) | 4" | Measurement Type | Inch |
| Body Length Maximum (LBX) | 4" | Nut Diameter | 1.97" |
| Flange Diameter (DF) | 1.97" | Length Group | Standard |
| Shank Type | CAT |
• Case hardened to 58–62 HRc • Pre-balanced to G2.5 @ 22,000 RPM's • T.I.R. from the collet cavity to the holder taper 0.0001" or better • Lot Numbers for lot traceability • Through the spindle coolant or through the flange version available • BT & CAT+ have Hi-Q clamping nut included • AT3 or beter tapers guaranteed • Superior surface finish at 0.25Ra for better fit and accuracy • Swiss made to ISO 90001
