Brand: Rego-Fix

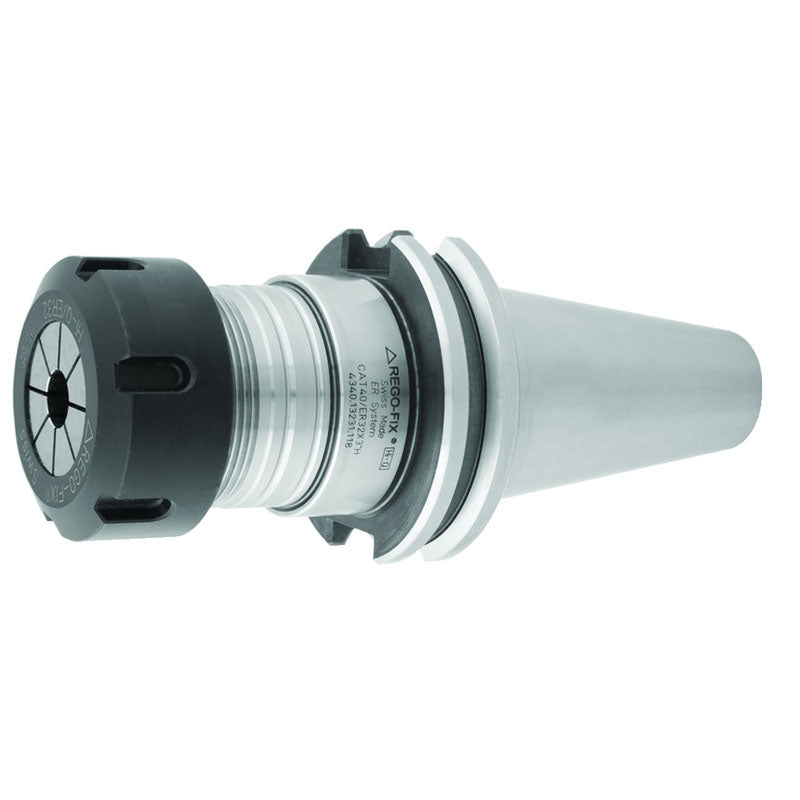

Rego-Fix GM20884313181 CAT40 x ER16 x 14" Collet Chuck
SKU: FTS-GM20884313181
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Rego-Fix 8843.13181 CAT40 x ER16 x 14" Collet ChuckFull Description
| Shank Size (SS) | #40 | Style | Standard |
| Connection Size (CSI) | #16 | Coolant Supply Property (CSP) | Coolant Thru |
| Body Diameter (BD) | 1.110" | Type | ER |
| Protruding Length (LPR) | 15" | Measurement Type | Inch |
| Body Length (LB) | 8" | Nut Diameter | 1.1" |
| Connection Diameter Machine Side (DCONMS) | 1.65" | Length Group | XL |
| Tool Type | Collet Chucks |
• For lengths up to 14 • Special design dampens vibrations better than solid body designs • Case hardened to 58–62 HRc for long life and wear resistances • Pre-balanced to 5,000 rpms. • TIR from the collet cavity to the holder taper 0.0004 or better • Lot Numbers for lot traceability • Precision threads for better clamping force and accuracy • Through the spindle coolant or through the flange version available • REGO-FIX Hi-Q nut provided for added clamping force.
