Brand: Mollificio Bordignon

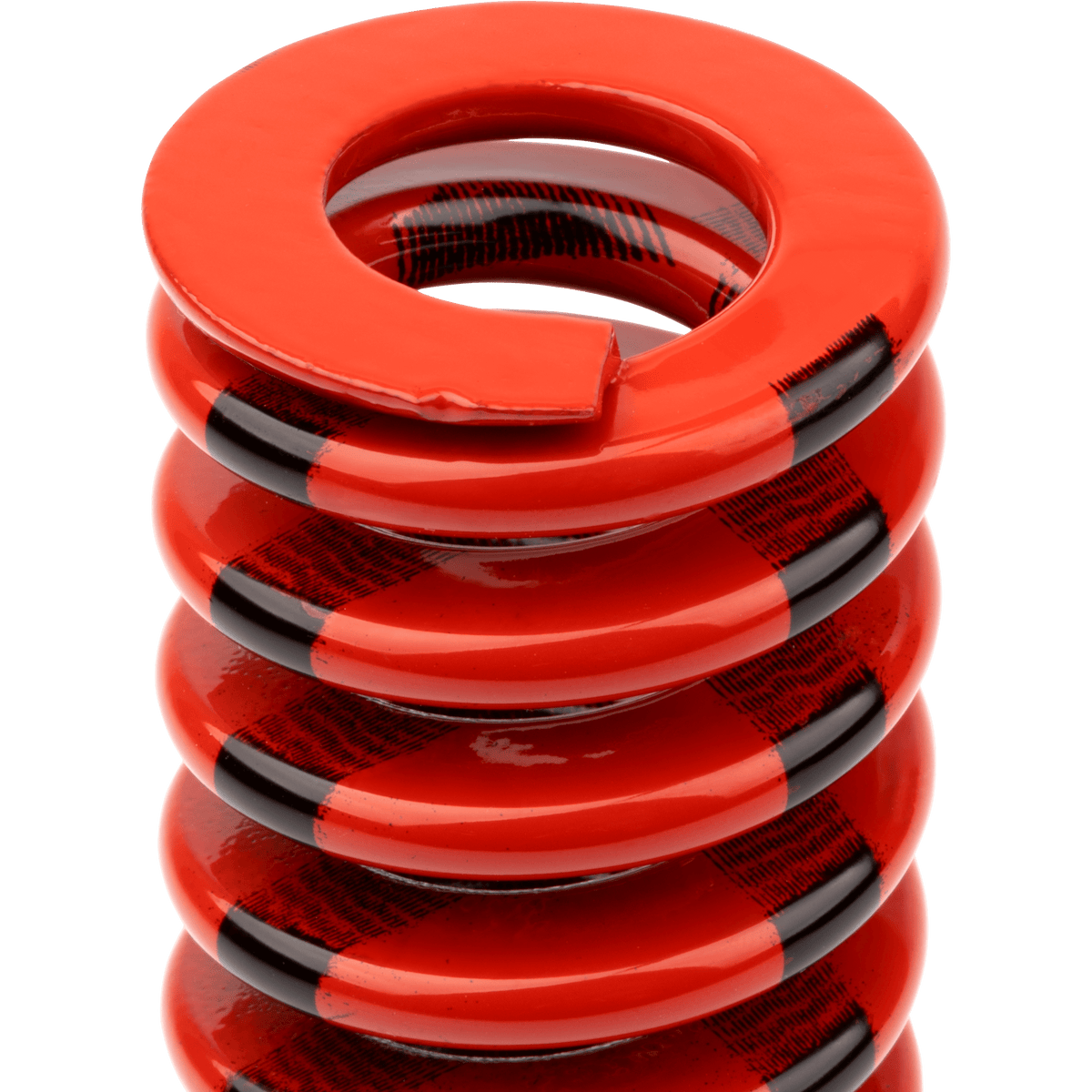

Mollificio Bordignon USR32076 USR Medium Heavy Load Die Springs
SKU: BD-USR32076
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*
Mollificio Bordignon USR32076 USR Medium Heavy Load Die Springs
Crafted by Mollificio Bordignon, the USR32076 die spring delivers precise, reliable performance for demanding tooling operations. Its specifications - housing diameter inches 1 1/4; housing diameter inches 5/8; free length inches 3; rate lbs/0; 1 inch 51.2 - support efficiency and repeatable performance in tooling environments. Manufactured to ISO 10243 standards, this spring is ideal for die sets, stamping tools, and heavy-duty mechanical systems.
| D (Housing diameter inches): | 1 1/4 |
| d (Rod diameter inches): | 5/8 |
| Lo (Free length inches): | 3 |
| R (Rate lbs/0,1 inch): | 51.2 |
| S1 (Stroke inches for 30% Lo): | 0.60 |
| F1 (Load lbs for 30% Lo): | 307.2 |
| S2 (Stroke inches for 40% Lo): | 0.75 |
| F2 (Load inches for 40% Lo): | 384.0 |
| S3 (Stroke inches for 25% Lo): | 0.90 |
| F3 (Load inches for 25% Lo): | 460.8 |
| Smax (Max Stroke inches): | 1.11 |
Comparable Springs:
Special Springs: RMHR32-076
Danly: MHC39L
Raymond: 104-612
Moeller: OMS125-300
