Brand: Mollificio Bordignon

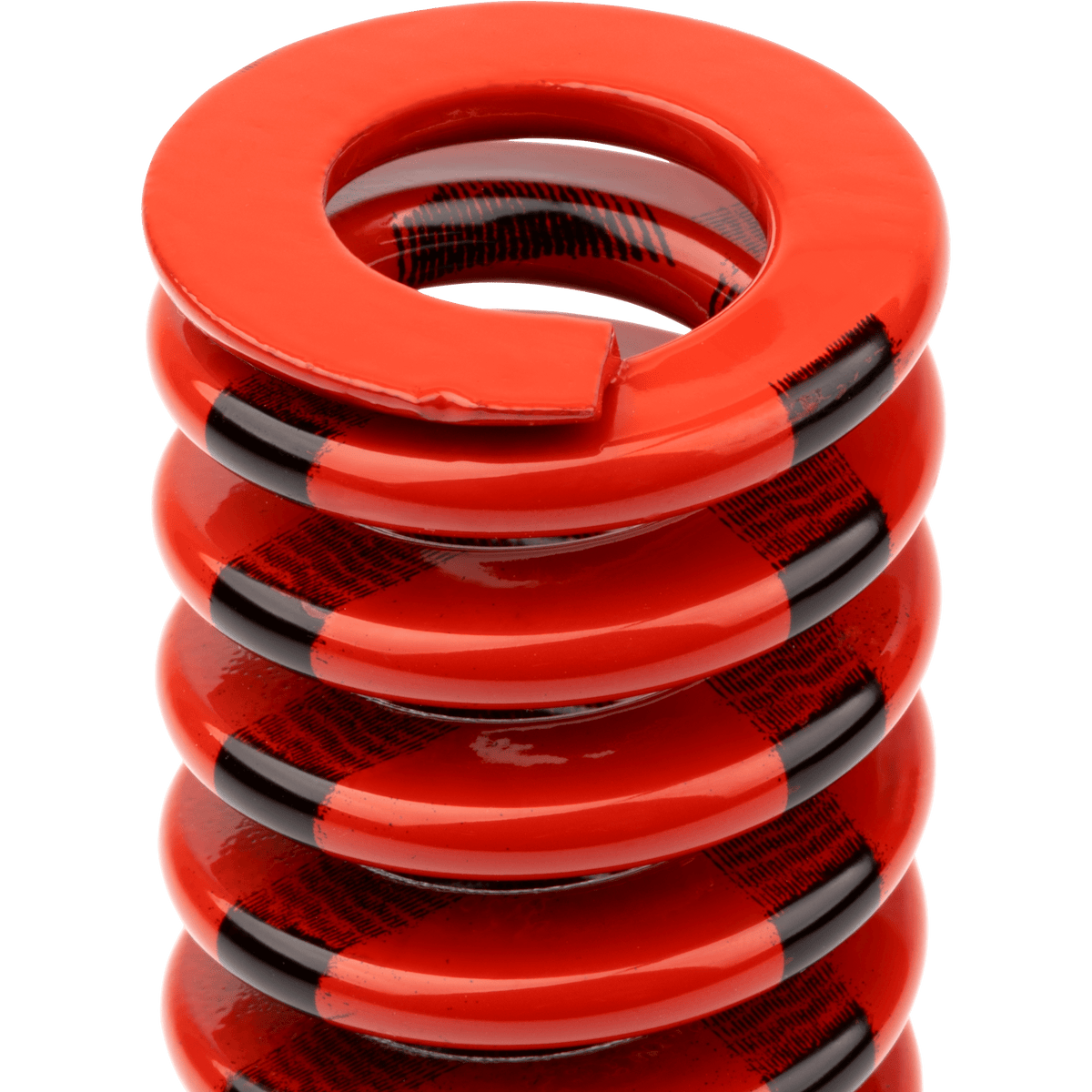

Mollificio Bordignon USR26089 USR Medium Heavy Load Die Springs
SKU: BD-USR26089
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*
Mollificio Bordignon USR26089 USR Medium Heavy Load Die Springs
Crafted by Mollificio Bordignon, the USR26089 die spring delivers precise, reliable performance for demanding tooling operations. With housing diameter inches 1; housing diameter inches 1/2; free length inches 3 1/2; rate lbs/0; 1 inch 22.9, it delivers optimal flexibility, stability, and precision in die applications. Manufactured to ISO 10243 standards, this spring is ideal for die sets, stamping tools, and heavy-duty mechanical systems.
| D (Housing diameter inches): | 1 |
| d (Rod diameter inches): | 1/2 |
| Lo (Free length inches): | 3 1/2 |
| R (Rate lbs/0,1 inch): | 22.9 |
| S1 (Stroke inches for 30% Lo): | 0.70 |
| F1 (Load lbs for 30% Lo): | 160.3 |
| S2 (Stroke inches for 40% Lo): | 0.88 |
| F2 (Load inches for 40% Lo): | 201.5 |
| S3 (Stroke inches for 25% Lo): | 1.05 |
| F3 (Load inches for 25% Lo): | 240.5 |
| Smax (Max Stroke inches): | 1.30 |
Comparable Springs:
Special Springs: RMHR26-089
Danly: MHC17L
Raymond: 104-514
Moeller: OMS100-350
