Brand: Mollificio Bordignon

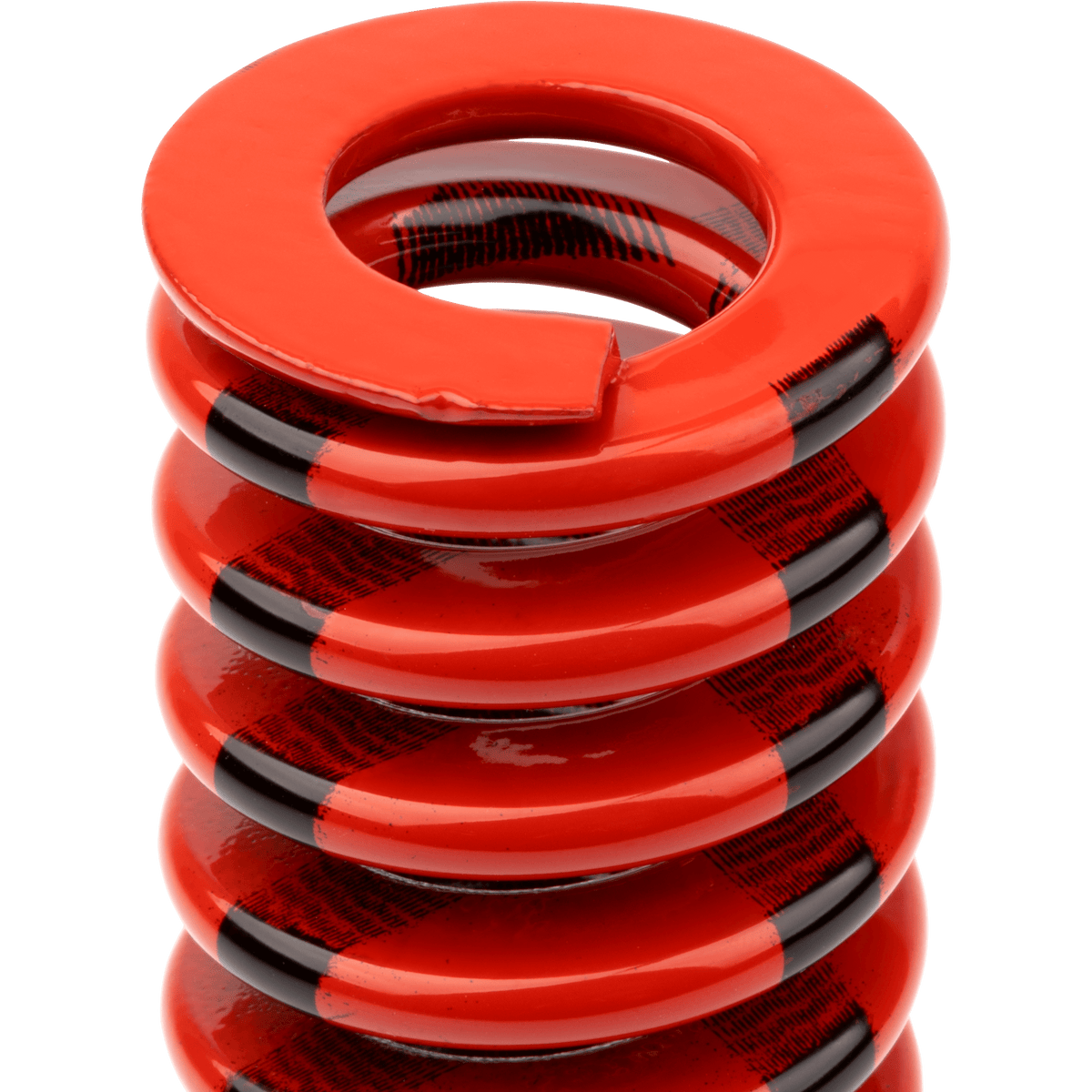

Mollificio Bordignon USR10076 USR Medium Heavy Load Die Springs
SKU: BD-USR10076
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*
Mollificio Bordignon USR10076 USR Medium Heavy Load Die Springs
The Mollificio Bordignon USR10076 die spring showcases exceptional Italian engineering and robust construction for lasting durability. With housing diameter inches 3/8; housing diameter inches 3/16; free length inches 3; rate lbs/0; 1 inch 3.0, it delivers optimal flexibility, stability, and precision in die applications. Manufactured to ISO 10243 standards, this spring is ideal for die sets, stamping tools, and heavy-duty mechanical systems.
| D (Housing diameter inches): | 3/8 |
| d (Rod diameter inches): | 3/16 |
| Lo (Free length inches): | 3 |
| R (Rate lbs/0,1 inch): | 3.0 |
| S1 (Stroke inches for 30% Lo): | 0.60 |
| F1 (Load lbs for 30% Lo): | 18.0 |
| S2 (Stroke inches for 40% Lo): | 0.75 |
| F2 (Load inches for 40% Lo): | 22.5 |
| S3 (Stroke inches for 25% Lo): | 0.90 |
| F3 (Load inches for 25% Lo): | 27.0 |
| Smax (Max Stroke inches): | 1.11 |
Comparable Springs:
Special Springs: RMHR10-076
Danly: MHC104L
Raymond: 104-112
Moeller: OMS037-300
