Brand: Mollificio Bordignon

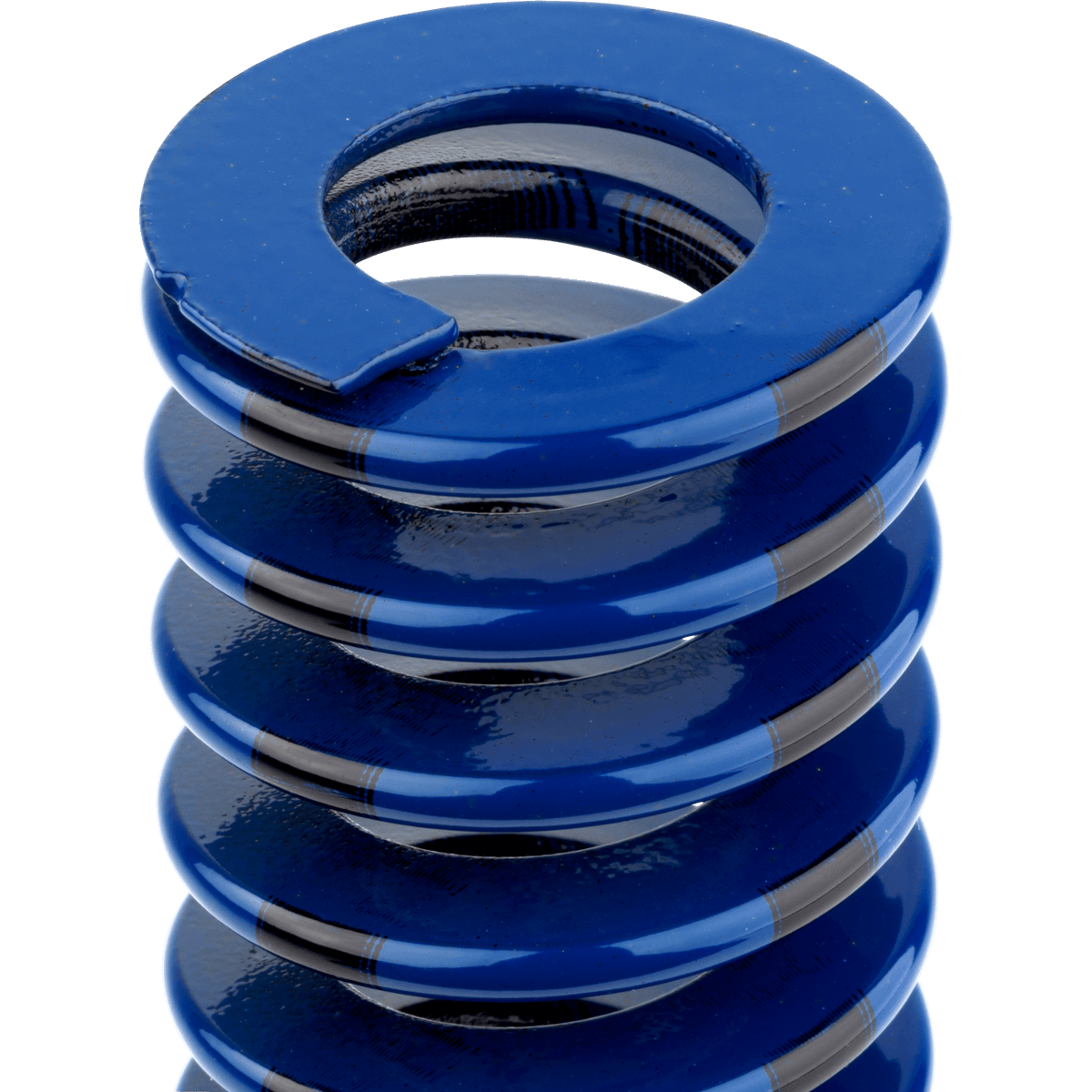

Mollificio Bordignon USB38203 USB Medium Load Die Springs
SKU: BD-USB38203
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*
Mollificio Bordignon USB38203 USB Medium Load Die Springs
Crafted by Mollificio Bordignon, the USB38203 die spring delivers precise, reliable performance for demanding tooling operations. It features housing diameter inches 1 1/2; housing diameter inches 3/4; free length inches 8; rate lbs/0; 1 inch 13.2 - ensuring steady load response and excellent compression consistency. The Mollificio Bordignon USB38203 achieves the perfect blend of precision rate control, durability, and compact design.
| D (Housing diameter inches): | 1 1/2 |
| d (Rod diameter inches): | 3/4 |
| Lo (Free length inches): | 8 |
| R (Rate lbs/0,1 inch): | 13.2 |
| S1 (Stroke inches for 30% Lo): | 2.00 |
| F1 (Load lbs for 30% Lo): | 264.0 |
| S2 (Stroke inches for 40% Lo): | 2.80 |
| F2 (Load inches for 40% Lo): | 369.6 |
| S3 (Stroke inches for 25% Lo): | 3.20 |
| F3 (Load inches for 25% Lo): | 422.4 |
| Smax (Max Stroke inches): | 4.00 |
Comparable Springs:
Special Springs: RMBL38-203
Danly: M47L
Raymond: 103-732
Moeller: OLS150-800
