Brand: Mollificio Bordignon

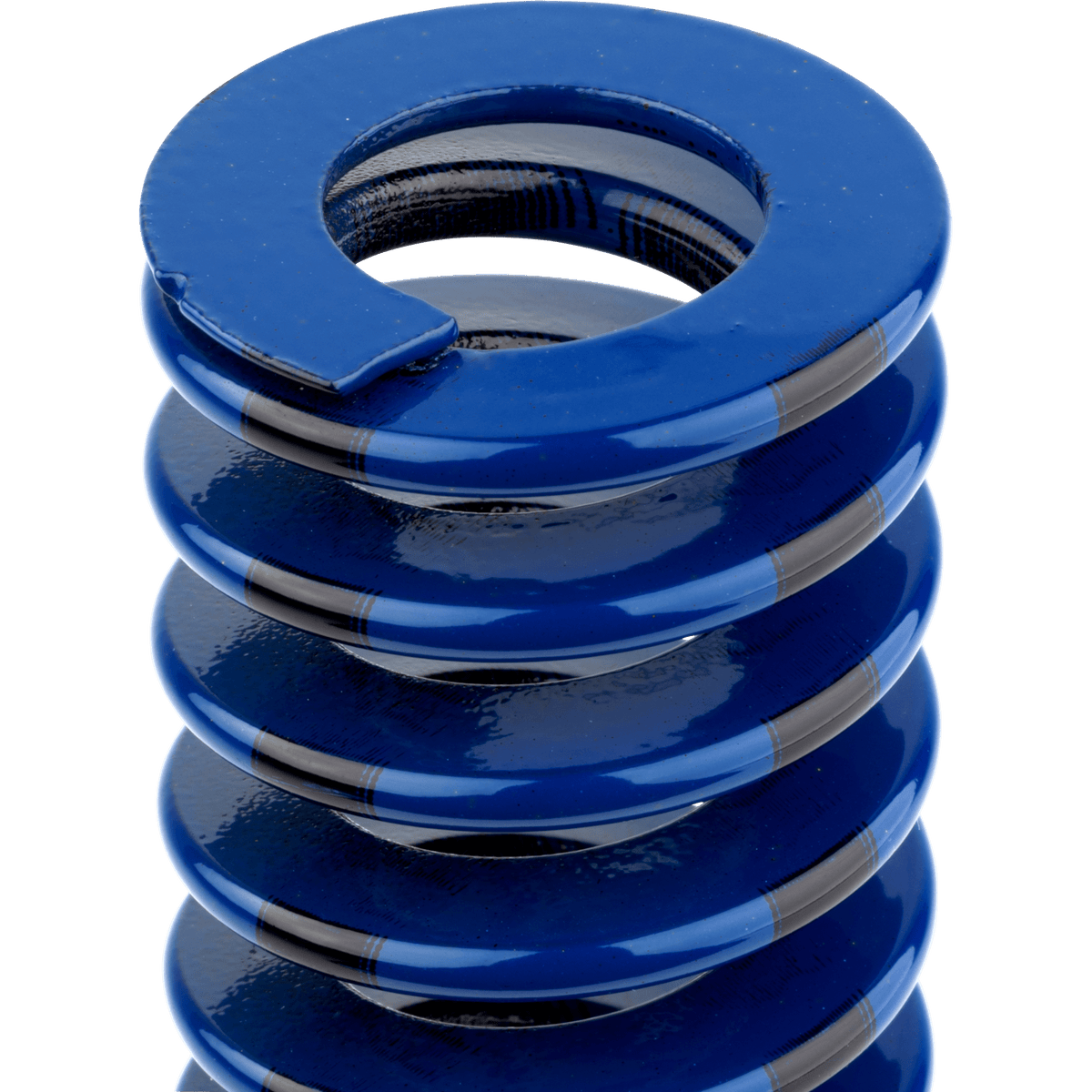

Mollificio Bordignon USB38178 USB Medium Load Die Springs
SKU: BD-USB38178
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*
Mollificio Bordignon USB38178 USB Medium Load Die Springs
Engineered by Mollificio Bordignon, the USB38178 die spring spring offers superior dimensional control and fatigue resistance for industrial use. With housing diameter inches 1 1/2; housing diameter inches 3/4; free length inches 7; rate lbs/0; 1 inch 15.3, it delivers optimal flexibility, stability, and precision in die applications. Manufactured to ISO 10243 standards, this spring is ideal for die sets, stamping tools, and heavy-duty mechanical systems.
| D (Housing diameter inches): | 1 1/2 |
| d (Rod diameter inches): | 3/4 |
| Lo (Free length inches): | 7 |
| R (Rate lbs/0,1 inch): | 15.3 |
| S1 (Stroke inches for 30% Lo): | 1.75 |
| F1 (Load lbs for 30% Lo): | 267.8 |
| S2 (Stroke inches for 40% Lo): | 2.45 |
| F2 (Load inches for 40% Lo): | 374.9 |
| S3 (Stroke inches for 25% Lo): | 2.80 |
| F3 (Load inches for 25% Lo): | 428.4 |
| Smax (Max Stroke inches): | 3.50 |
Comparable Springs:
Special Springs: RMBL38-178
Danly: M46L
Raymond: 103-728
Moeller: OLS150-700
